Blower Motor Resistor: Testing and Inspection

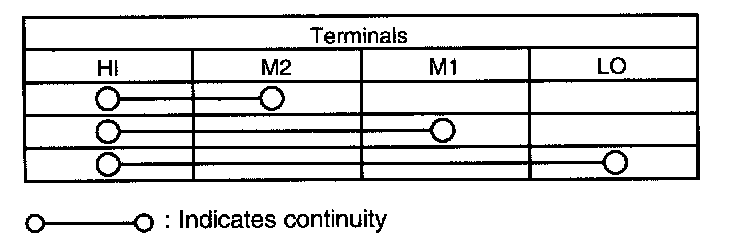

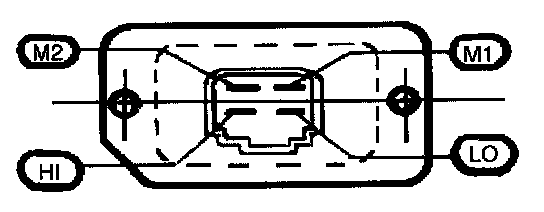

1. Disconnect the resistor assembly connectors. Check continuity between terminals.








2. If not as specified, replace the resistor assembly.
