Power Mirror Switch
>>
Testing and Inspection
Power Mirror Switch: Testing and Inspection

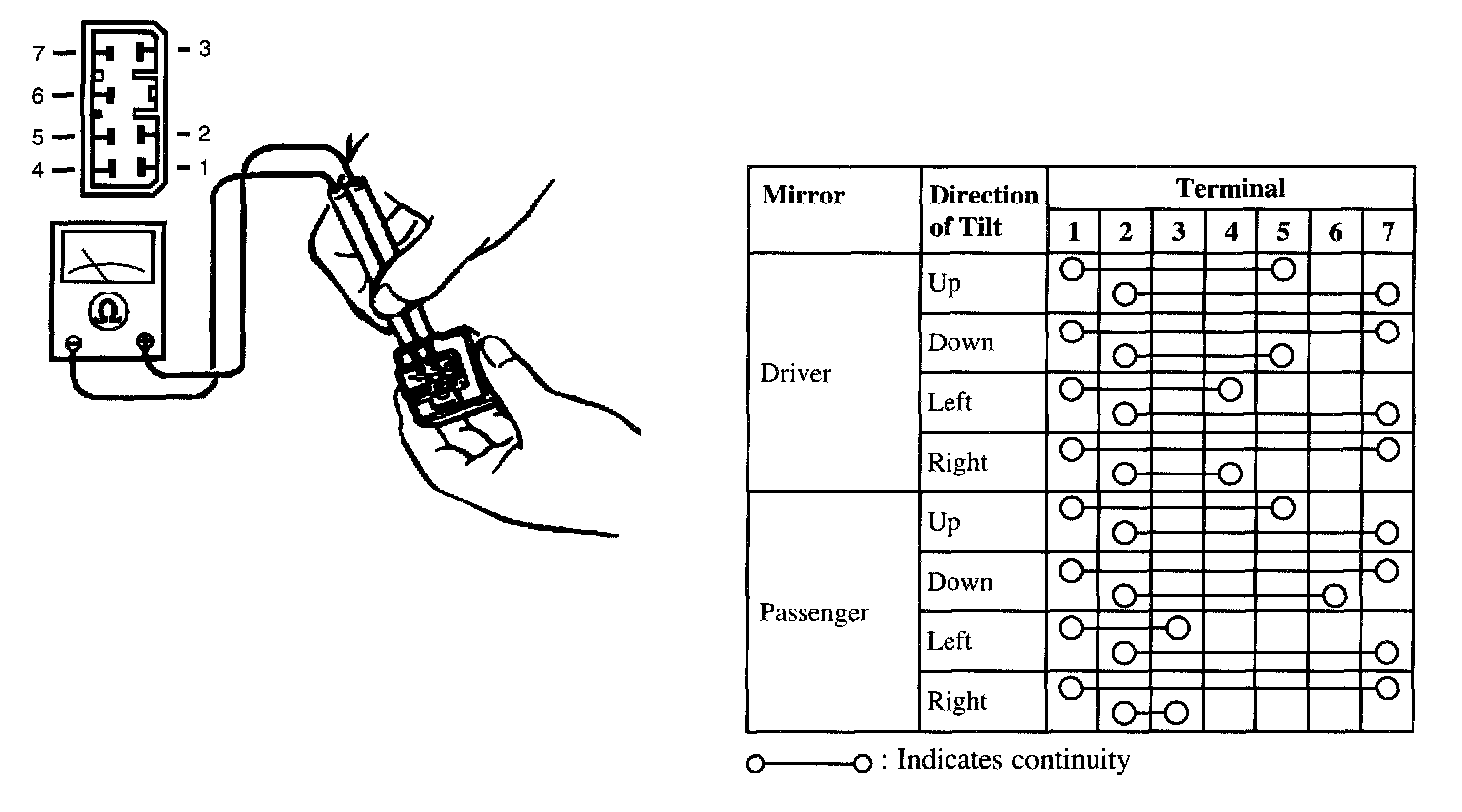

1.
Disconnect the
power mirror switch
.
2.
Check for continuity between terminals using an ohmmeter.
