Headliner: Service and Repair
Removal and Installation
1.
Disconnect the negative battery cable.
2.

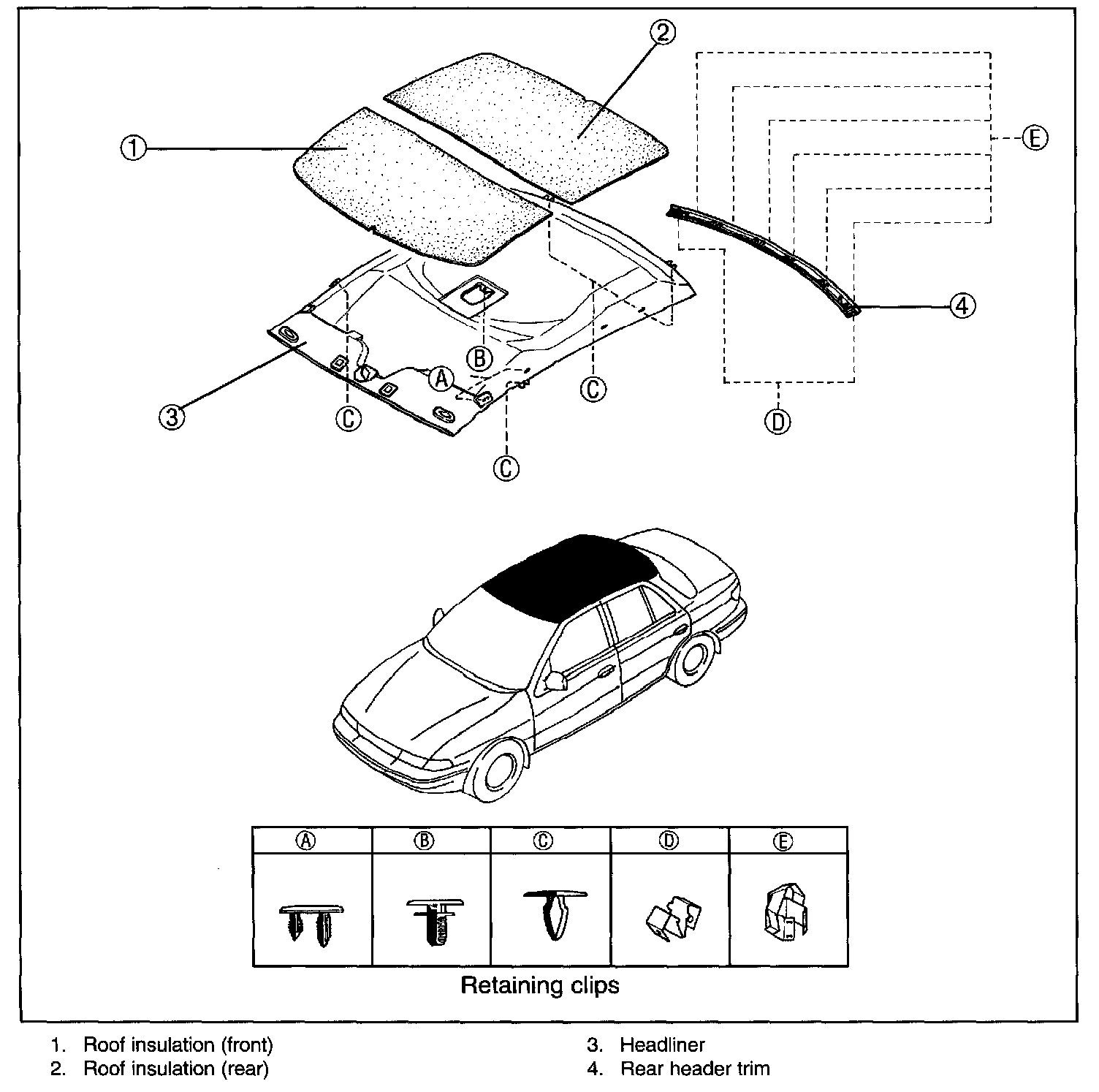

Remove components in the order shown in the figure.
3.
Install in the reverse order of removal.
