Sephia RS Sedan L4-1.8L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
P Code Charts
>>
P0505
P0505

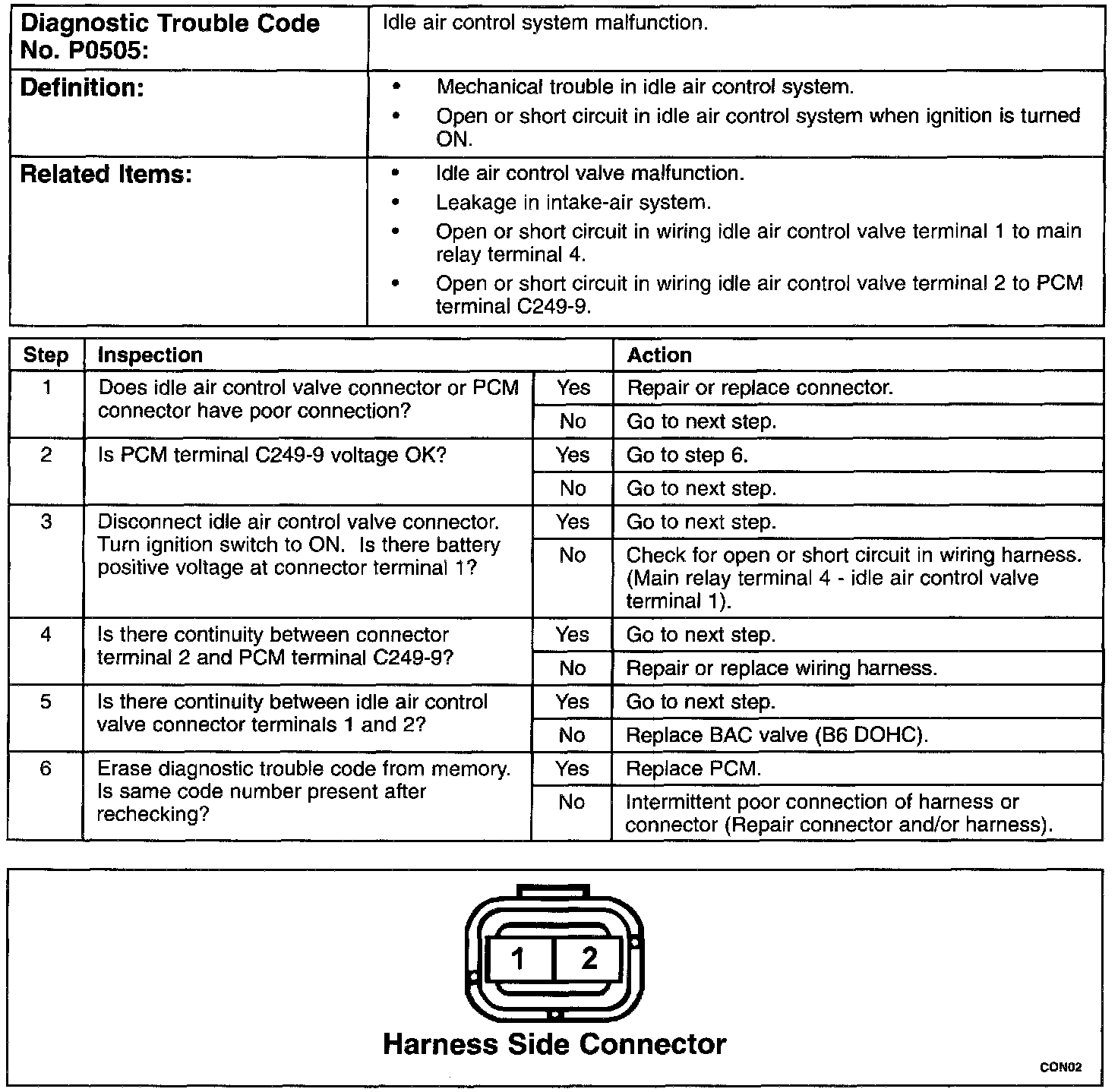

DTC P0505 Idle air control system malfunction
