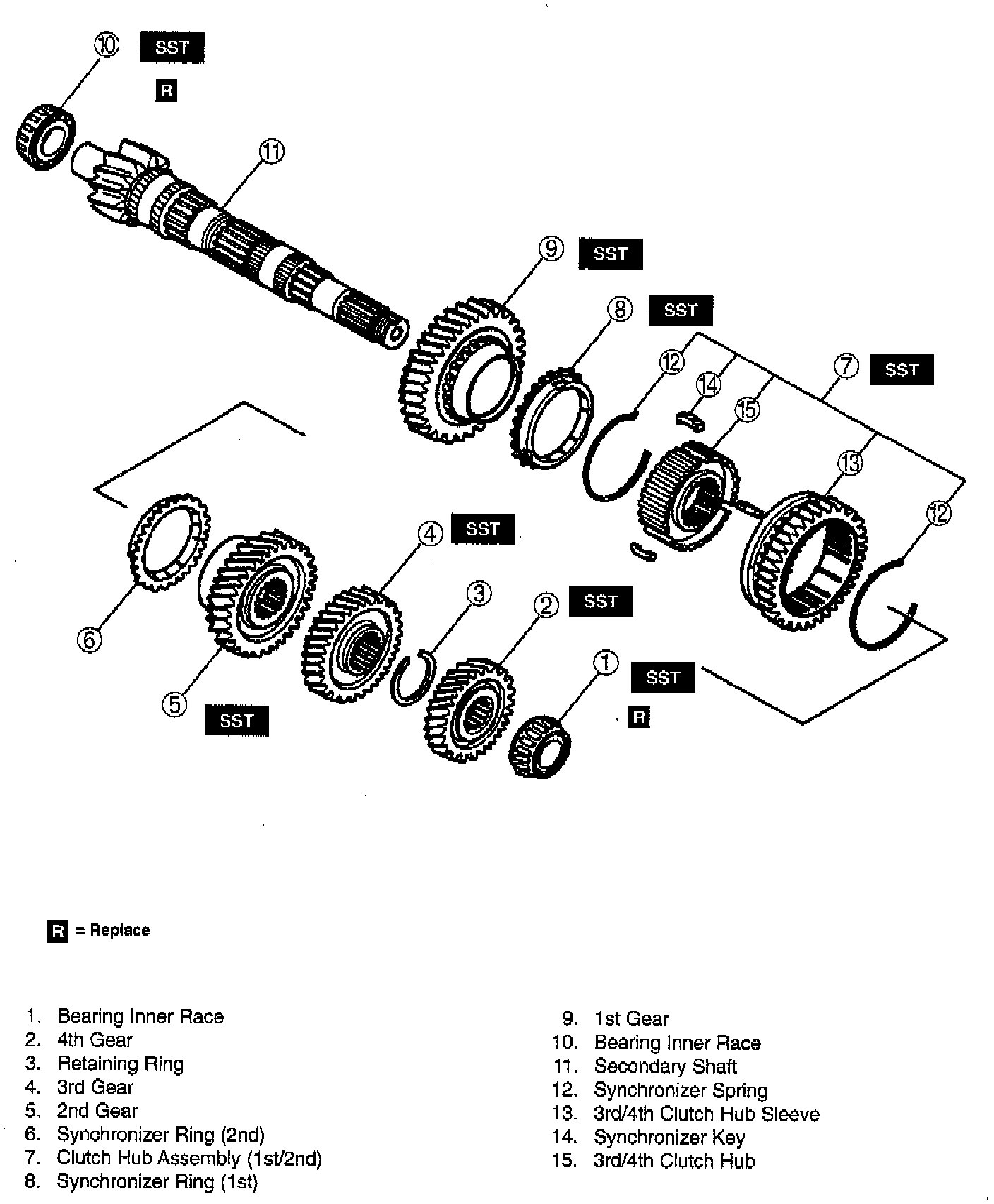

Disassembly Notes

NOTE: Disassemble in the order shown.

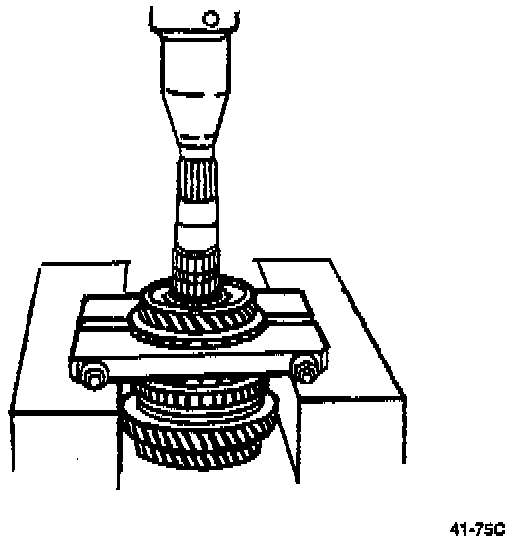

BEARING INNER RACE AND 4TH GEAR

CAUTION: Hold the shaft with one hand so that it does not fall.





1. Remove the bearing inner race and 4th gear with a standard bearing puller.

3RD GEAR AND 2ND GEAR
1. Remove the retaining ring.





2. Remove the 3rd gear and 2nd gear with a standard bearing puller.

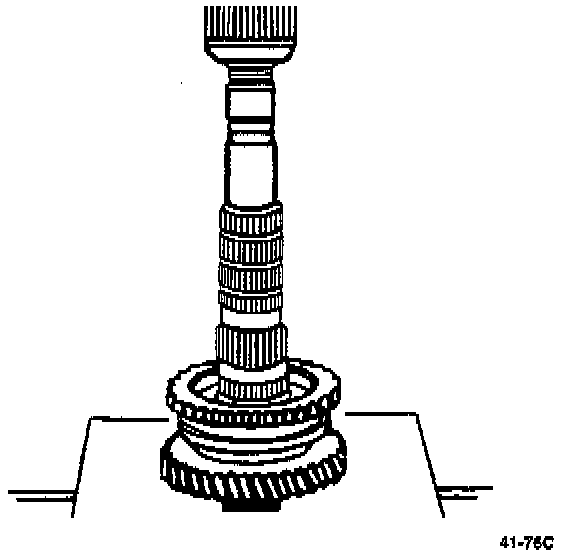

1ST/2ND CLUTCH HUB ASSEMBLY,
SYNCHRONIZER RING (1ST) AND 1ST GEAR

CAUTION: Hold the shaft with one hand so that it does not fall.





1. Remove the 1st/2nd clutch hub assembly (1st/2nd), synchronizer ring (1st), and 1st gear with the SST (or equivalent).

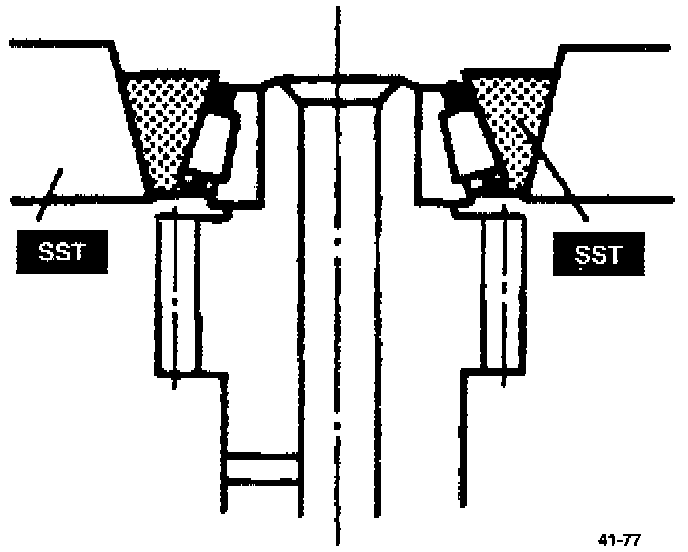

BEARING INNER RACE (SECONDARY SHAFT END)

CAUTION: Hold the shaft with one hand so that it does not fall.





1. Remove the bearing inner race with the SST (or equivalent).
