Fluid - M/T: Service and Repair

1. Disconnect the connector and remove the vehicle speed sensor.
2. Remove the 10 mm bolt and remove the speedometer driven gear (Do not lose the plastic insert).
3. Remove the drain plug and washer. Drain the oil into a suitable container.
4. Install a new washer and the drain plug.

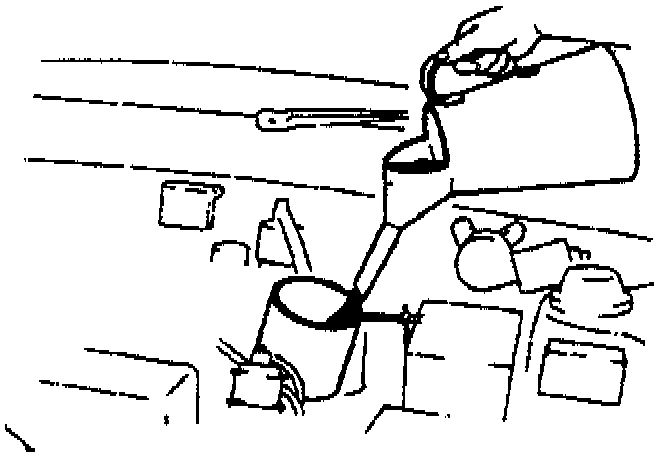

5. Add the necessary amount of specified oil through the speedometer driven gear mounting hole.

Specified oil:
Grade: API service GL-4 or GL-5
Viscosity: SAE 75W-9O
Capacity: 3.55 qts. (2.94 liters)

6. Verify the oil level as described under inspection.
7. Install the speedometer driven gear and 10 mm bolt. Make certain the plastic insert is in place.





8. Install the vehicle speed sensor and connector.
