Flex Plate: Service and Repair

REMOVAL





1. Remove in the order shown.





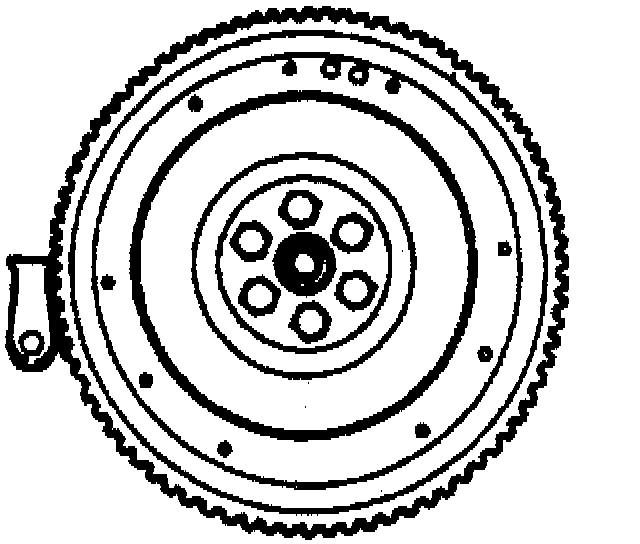

2. Lock the drive plate with the SST (or equivalent).
3. Remove the mounting bolts.

INSPECTION
1. Inspect all parts and repair or replace as necessary.

INSTALLATION

NOTE: Install in the reverse order of removal.

1. Assemble the adapter, drive plate, and backing plate.

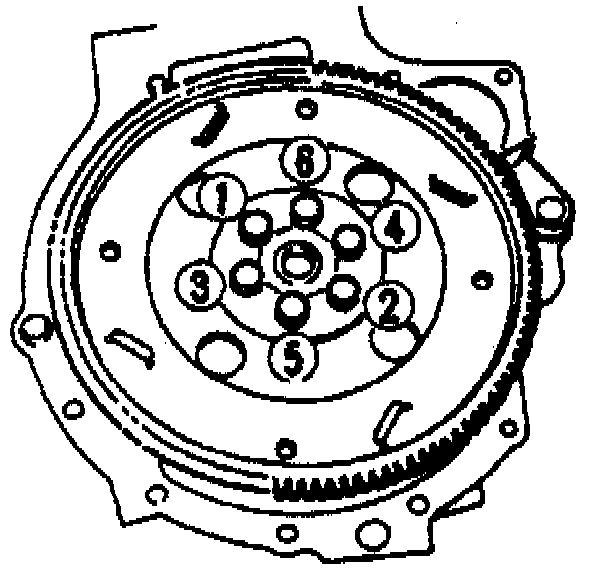

2. Install the SST (or equivalent) and tighten the bolts in the order shown.

Tightening torque: 71 - 75.9 ft. lbs. (97 - 102 Nm)

3. Install the transaxle.
