Component Tests and General Diagnostics

INSPECTION

NOTICE: Shift the selector lever from P range to other ranges with the ignition switch ON and the brake pedal depressed.

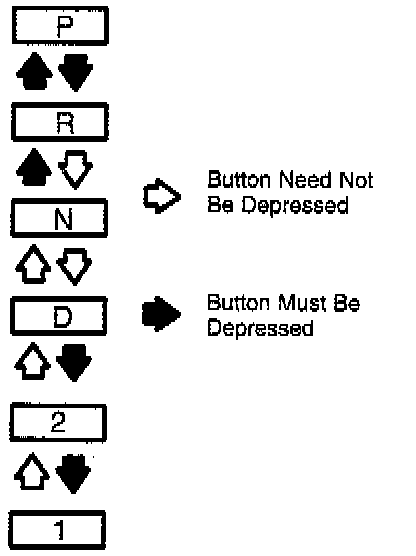

1. Verify that the selector lever can only be shifted as shown.
2. Verify that there is a click at each range when shifted from P to L range.
3. Verify that the positions of the selector lever and the indicator are aligned.
4. Verify that the button returns smoothly when pushed.
