Inspection

NOTE: Inspect all parts and repair or replace as necessary.

ONE-WAY CLUTCH NO. 2
1. Check for the following and repair or replace as necessary:

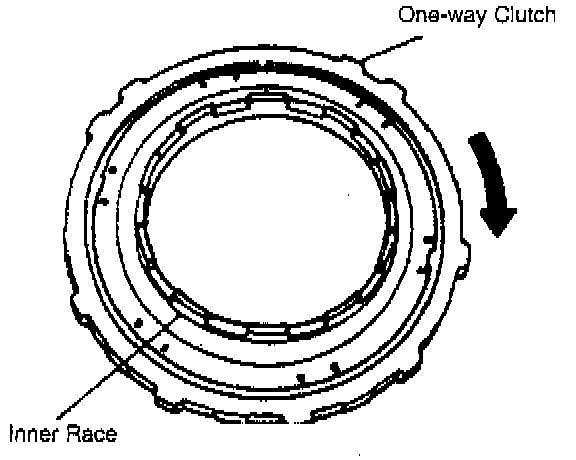

NOTICE: Assemble the one-way clutch and the inner race, then verify that the one-way clutch rotates only clockwise and smoothly.

A. Damaged or worn one-way clutch and operation.
B. Detached roller.

PLANETARY CARRIER
1. Check for the following and repair or replace as necessary.
A. Damage or worn gear and operation.





B. Clearance between pinion washers and planetary carrier.

Clearance: 0.008 - 0.028 inch (0.2 - 0.7 mm)
