Rear Stabilizer and Control Link

REMOVAL
1. Lift the rear of the vehicle and support it with safety stands.
2. Remove the wheels.

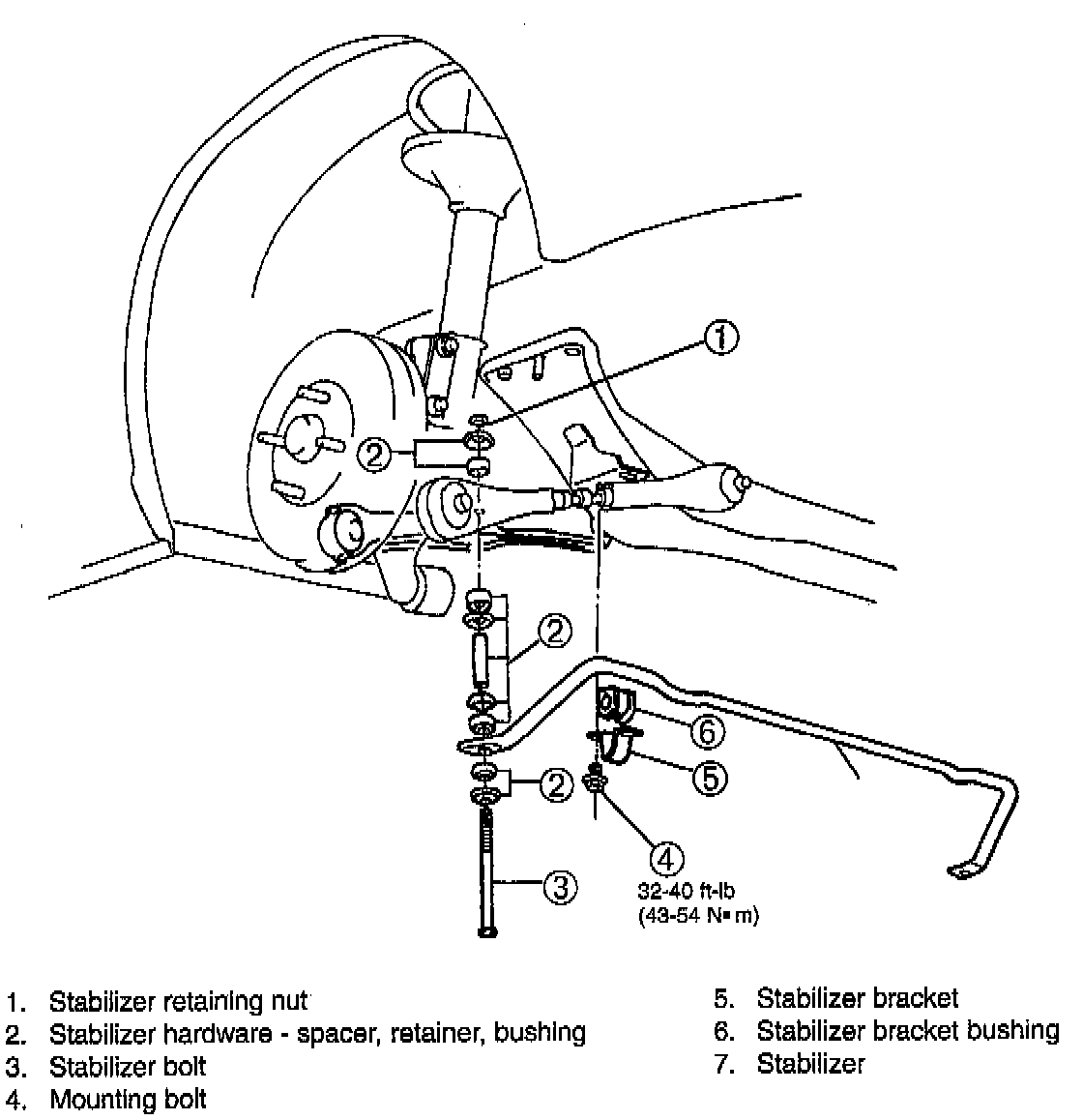

3. Remove in the order shown in the figure.

INSPECTION
Visually inspect each part and replace as necessary.

INSTALLATION
Install in the reverse order of removal, refer to INSTALLATION NOTE.

INSTALLATION NOTE:





Stabilizer Bracket Bushing
Locate the bushing adjacent to the positioning line on the stabilizer bar.





Stabilizer Retaining Nut
Tighten the stabilizer nuts so that the specified length of the thread is exposed.
Length specification: 0.43-0.59 inch (11-15 mm)

NOTICE: Tighten the stabilizer bracket bolts to the specified torque before lowering the vehicle (unloaded condition).
