Looseness of Steering Wheel and Column
Looseness of Steering Wheel and Column

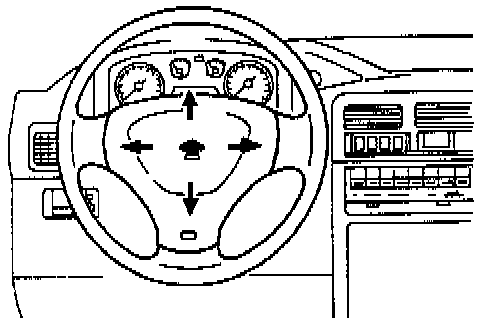

1.
Move the
steering wheel
in the directions shown to check for wear in the steering column bearings,
steering shaft
universal joint play and steering wheel to shaft looseness.
