Power Steering Pump: Service and Repair

REMOVAL

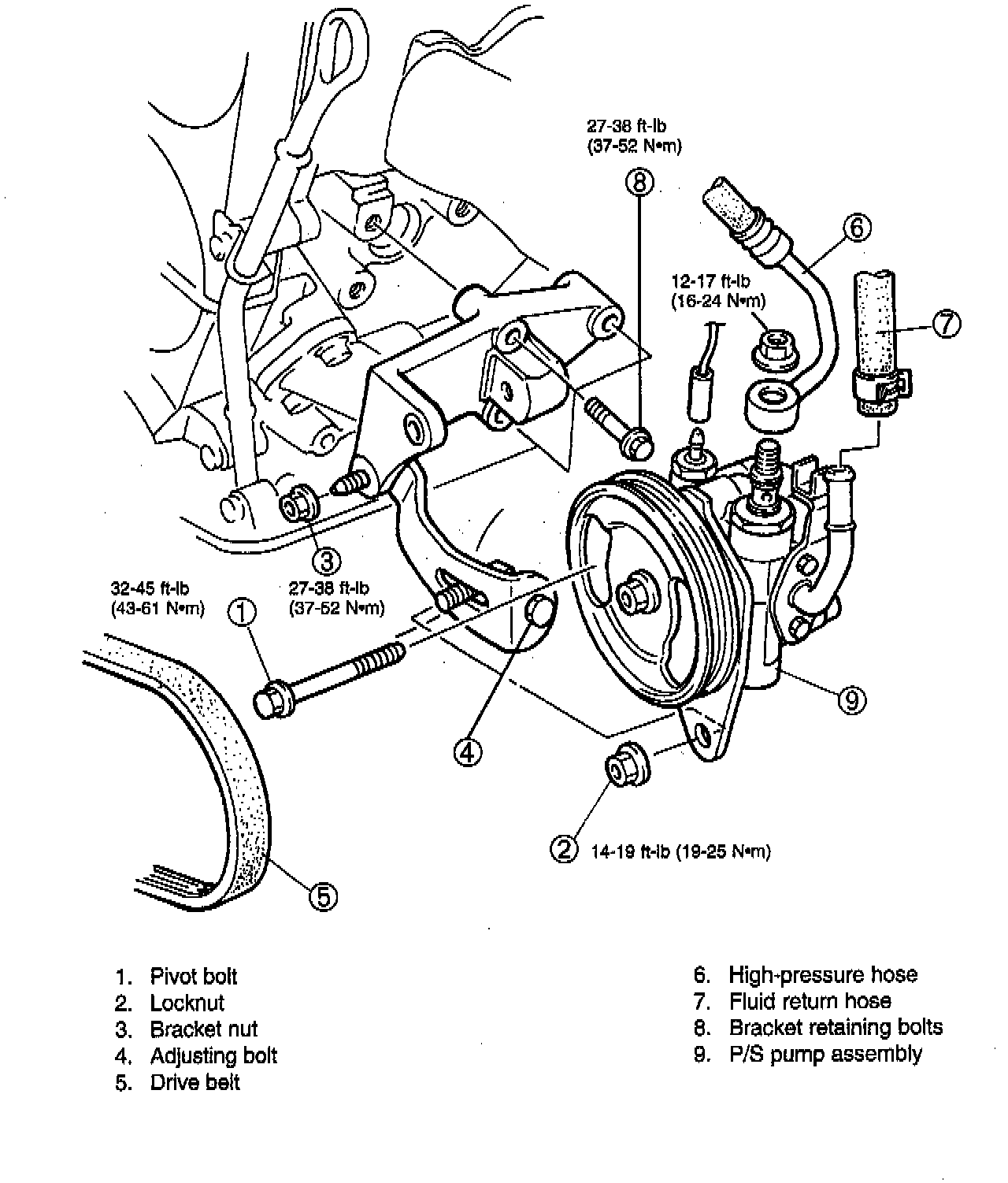

1. Remove in the order shown in the figure.
2. If necessary, replace entire power steering pump assembly; do not disassemble.

INSTALLATION
Install in the reverse order of removal.
