Inspection of Fluid Leakage





1. Start the engine.
2. Remember to turn the steering wheel fully left and right to build fluid pressure.
3. Check for fluid leakage.

NOTICE:
- To prevent damage, do not keep the steering wheel fully fumed for more than 15 seconds.

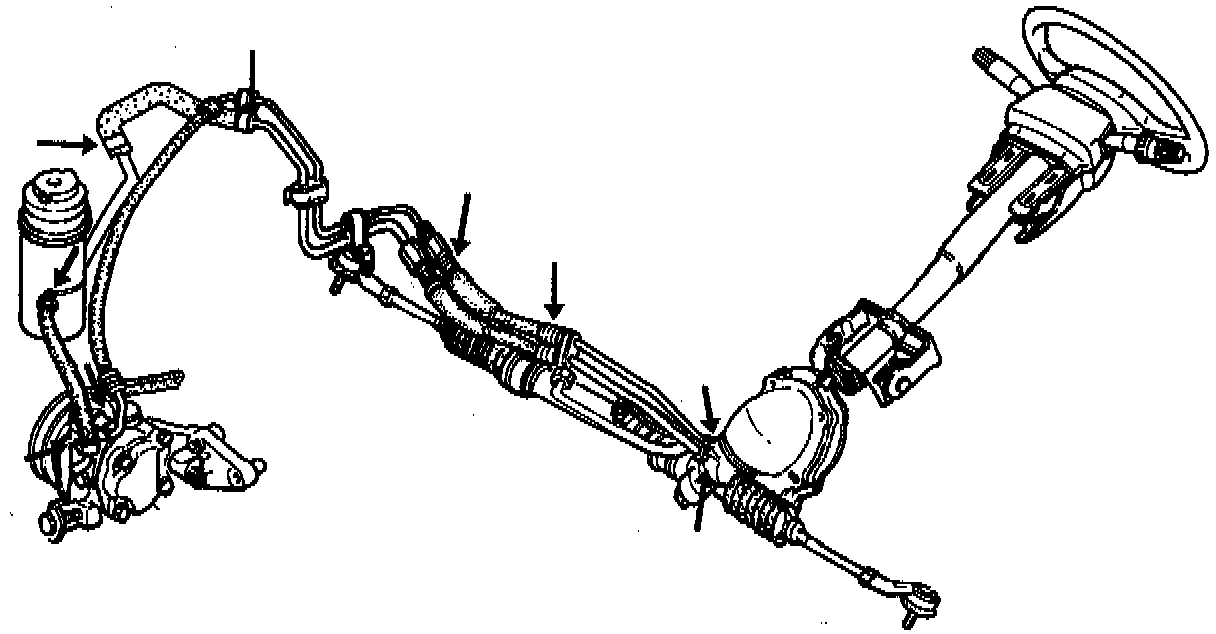

- The points where fluid leakage might occur are indicated by the arrows in the figure.
