Interior Lights

Circuit Testing-Dome Switch:

1. Remove one (1) screw and remove door switch with dust boot.
2. Disconnect door switch connector.

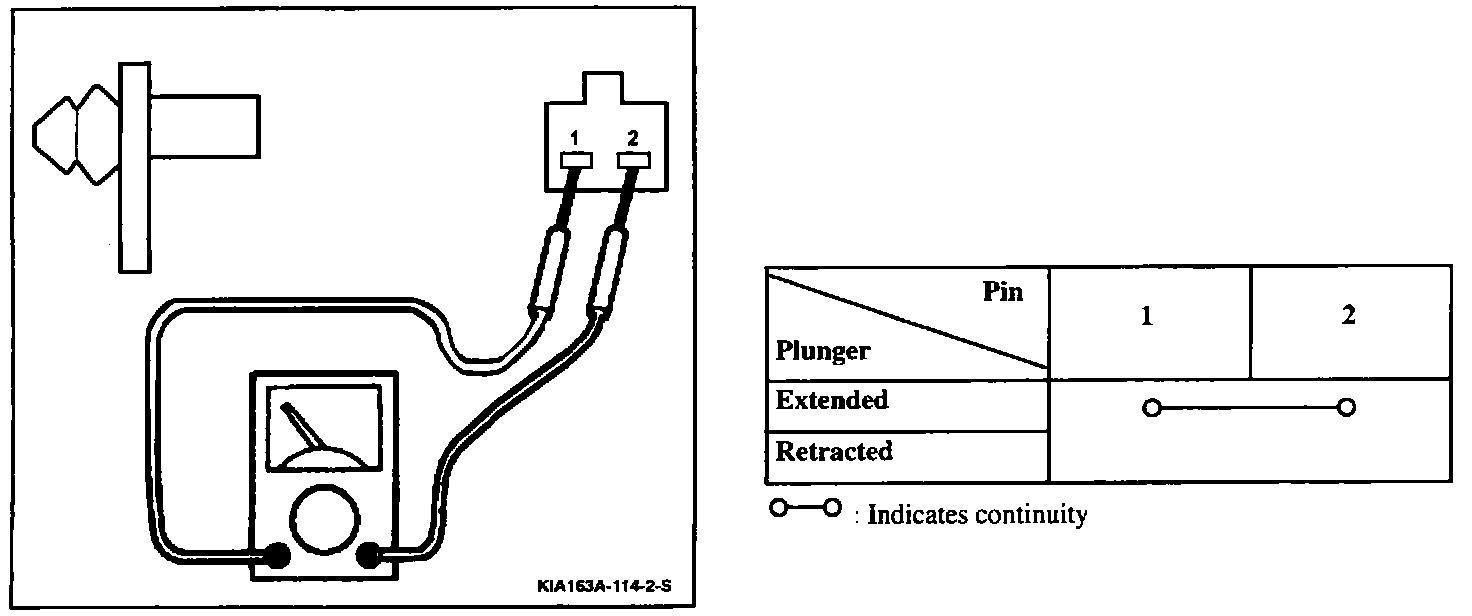

3. Check for continuity between terminals of door switch, as indicated.
4. If continuity is not as specified, replace the door switch.
