Circuit Testing
InspectionDoor Knob Lock Switch
1. Disconnect the door knob lock switch connector.

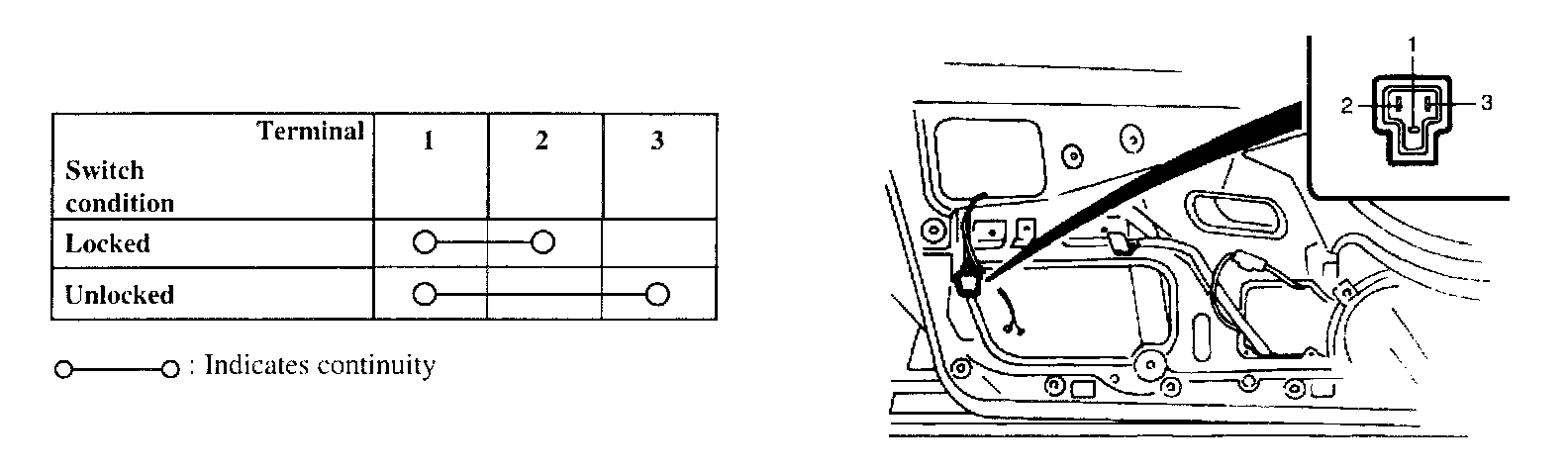

2. Check for continuity between terminals of the switch as indicated.
3. If continuity is not as specified, replace the door knob lock switch.
Door Knob Lock Switch
1. Disconnect the door knob lock switch connector.
2. Check for continuity between terminals of the switch as indicated.
3. If continuity is not as specified, replace the door knob lock switch.
