Removal and Installation

1. Discharge the refrigerant from A/C system. (Refer to the operating instructions of your refrigerant recovery/recycling/charging station for proper procedures.)





2. Disconnect the inlet and outlet pipe from the evaporator.

NOTICE
- When connecting and disconnecting, refer to Quick Coupling below
- Immediately plug all open fittings to keep moisture out of system.

3. Remove the cover and drain hose.
4. Remove the glove box and disconnect the wiring harness connector.

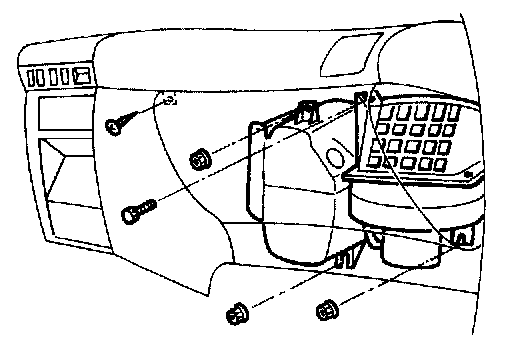

5. Remove the blower unit.
6. Install in the reverse order of removal.
7. Evacuate the refrigerant system. (Refer to the operating instructions of your refrigerant recovery/recycling/charging station for proper procedures.)
8. Charge the A/C system. (Refer to the operating instructions of your refrigerant recovery/recycling charging station for proper procedures.)
