Dome Lamp

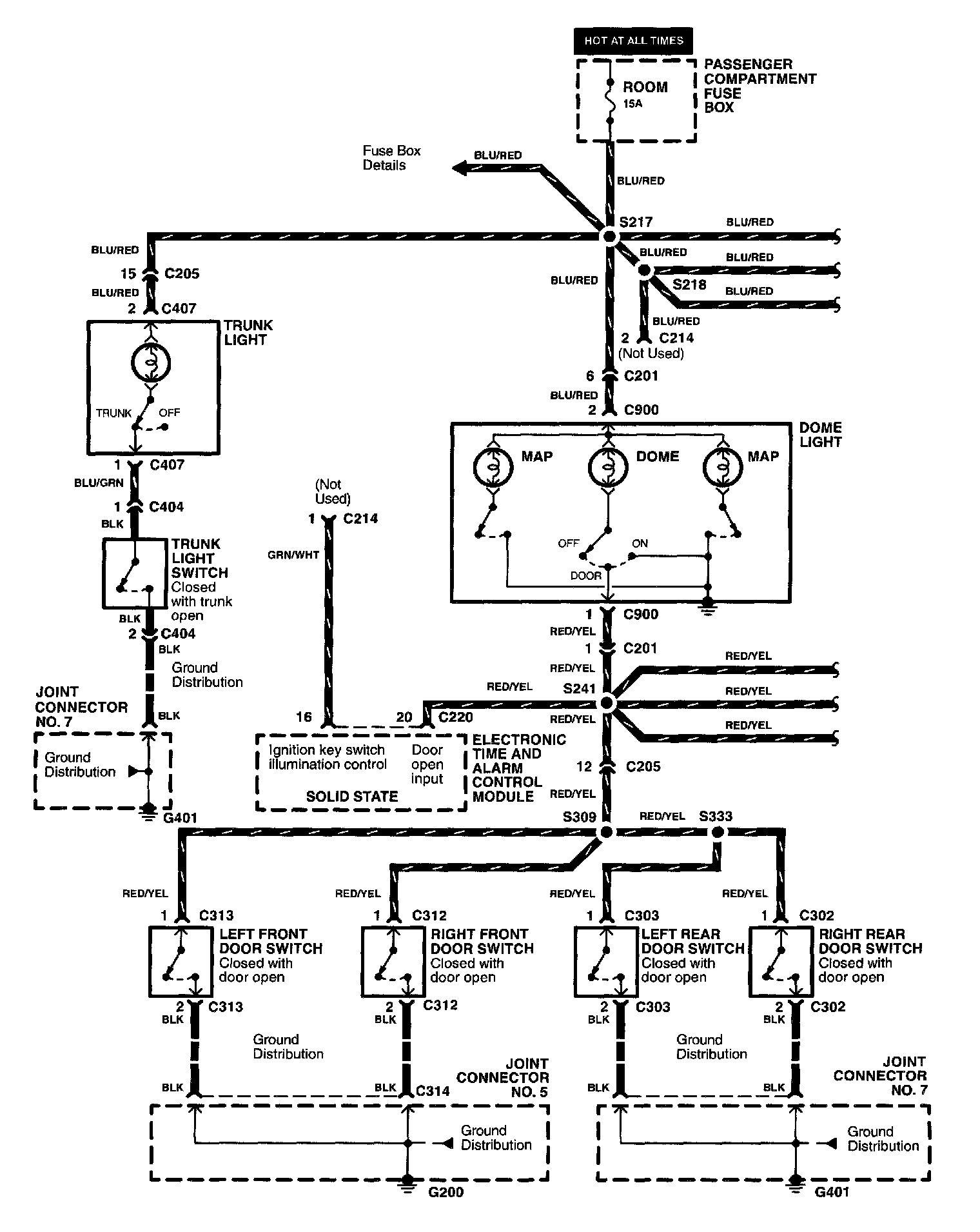

Interior Lights (Part 1 Of 4):

Interior Lights (Part 1 of 4)
Dome Light
Electronic Time And Alarm Control Module
Joint Connector No.5
Joint Connector No.7
Left Front Door Switch
Left Rear Door Switch
Passenger Compartment Fuse Box
Right Front Door Switch
Right Rear Door Switch
Trunk Light
Trunk Light Switch

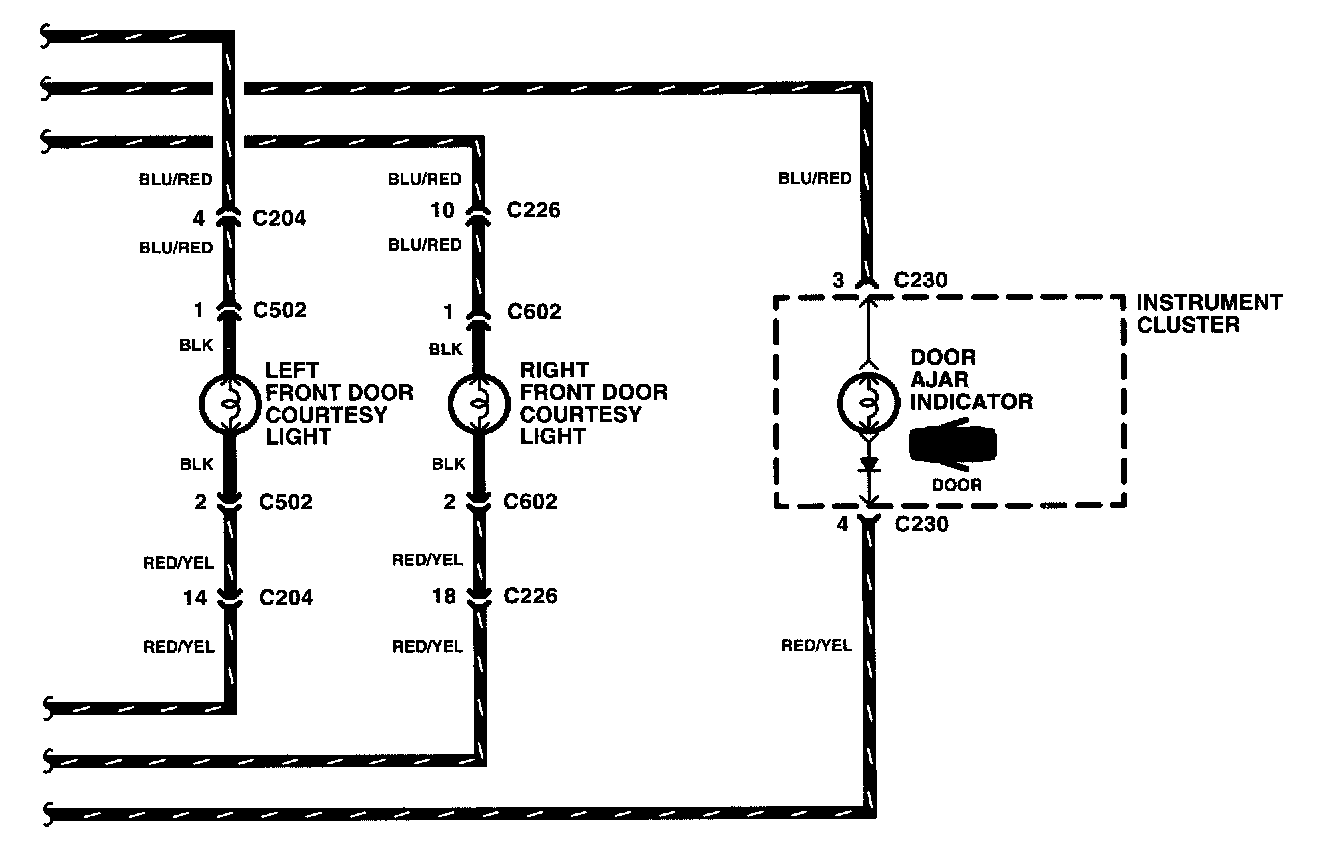

Interior Lights (Part 2 Of 4):

Interior Lights (Part 2 of 4)
Instrument Cluster
- Door Ajar Indicator
Left Front Door Courtesy Light
Right Front Door Courtesy Light

Interior Lights (Part 3 Of 4):

Interior Lights (Part 3 of 4)
Dome Light
Electronic Time And Alarm Control Module
Joint Connector No.5
Joint Connector No.7
Junction Connector No.3
Left Front Door Switch
Left Rear Door Switch
Passenger Compartment Fuse Box
Right Front Door Switch
Right Rear Door Switch
Trunk Light
Trunk Light Switch

Interior Lights (Part 4 Of 4):

Interior Lights (Part 4 of 4)
Instrument Cluster
- Door Ajar Indicator
Left Front Door Courtesy Light
Right Front Door Courtesy Light
