Automatic Transmission Controls

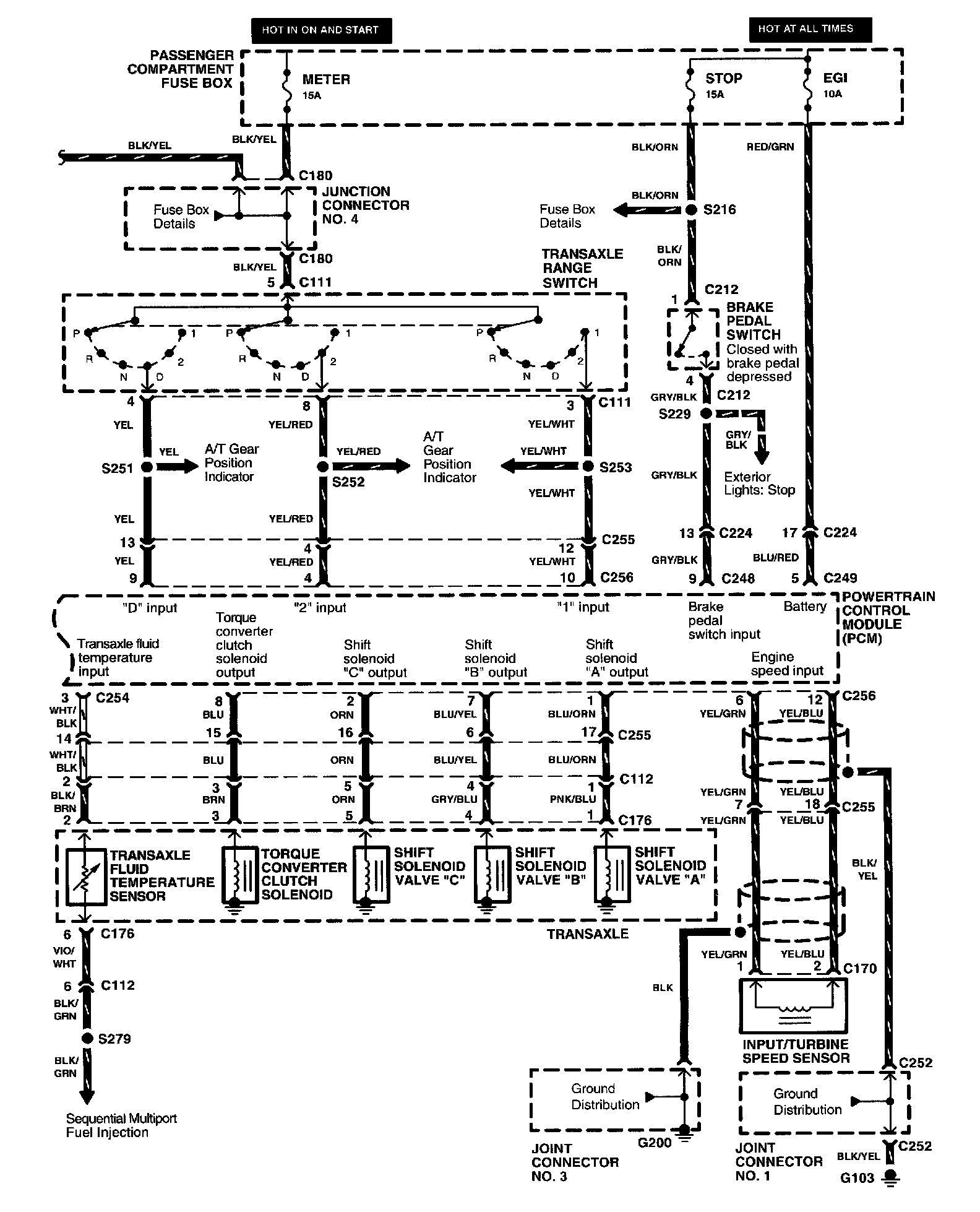

Automatic Transaxle Controls (Part 1 Of 2):

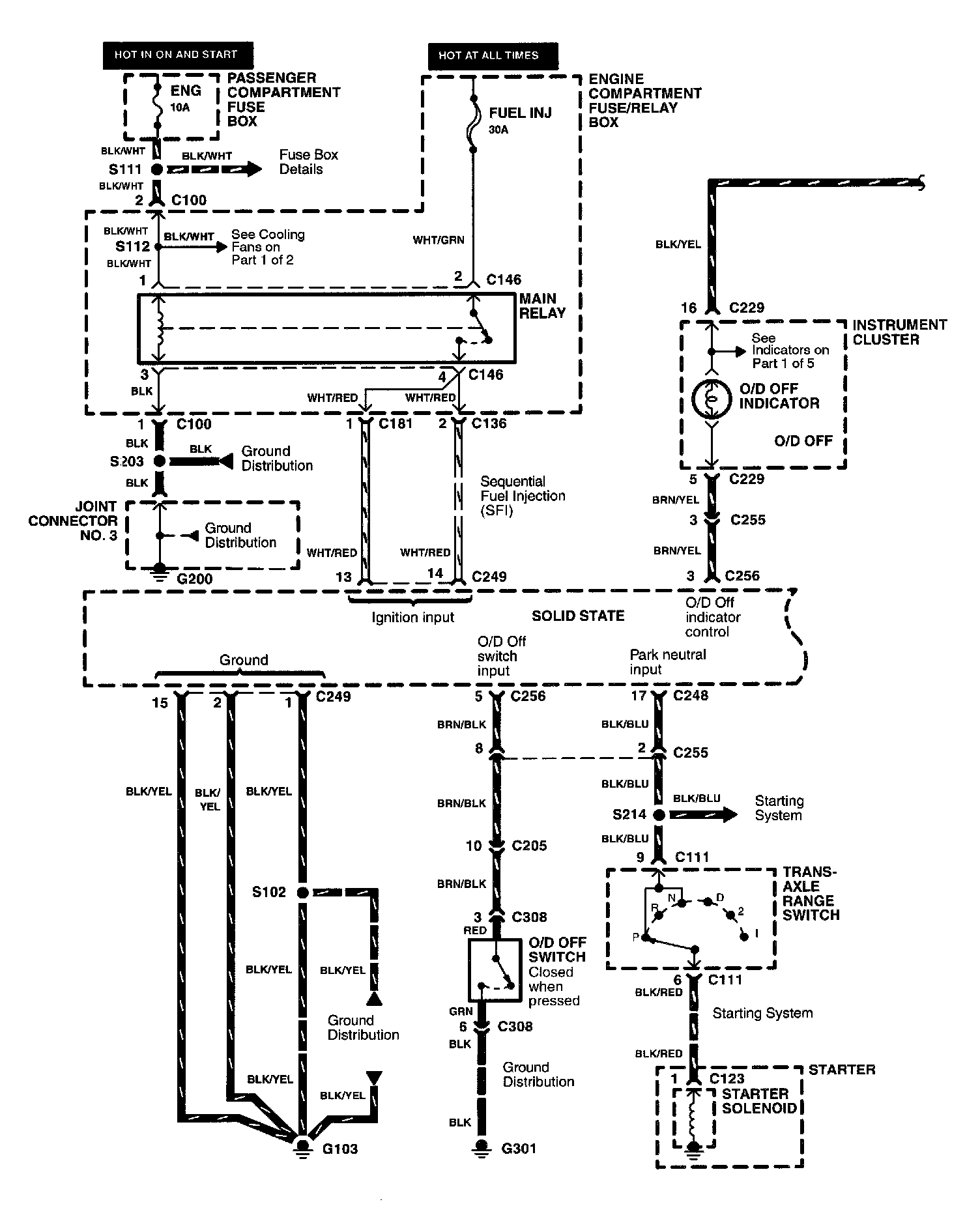

Automatic Transaxle Controls (Part 2 Of 2):
