Vacuum and Pressure Check

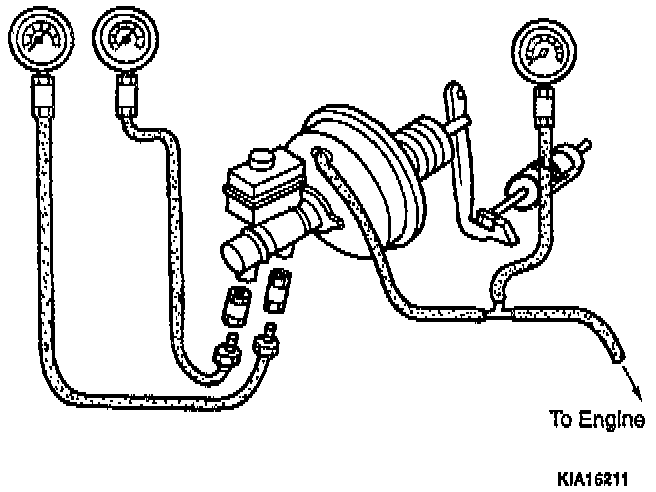

Connect pressure gauges, a vacuum gauge and a pedal depression force gauge as shown in the figure. After bleeding the air from the pressure gauges, conduct the Vacuum Loss test. Vacuum Loss

NOTE: Use commercially available gauges and a pedal depression force gauge.
