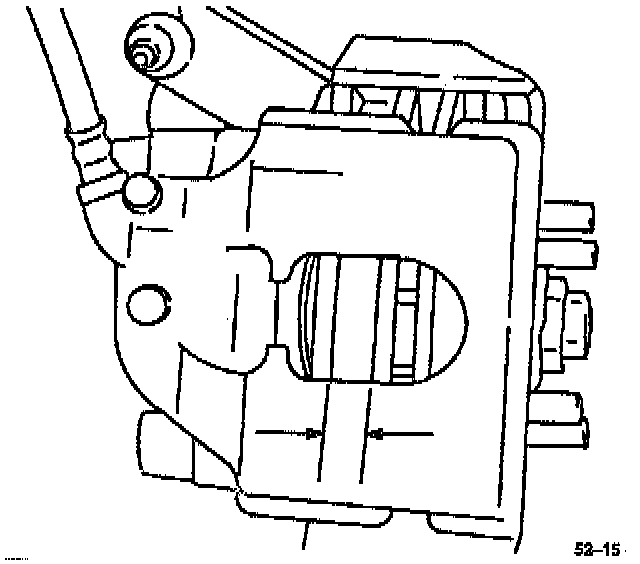

Brake Pad: Testing and Inspection

1. Raise and properly support the front of the vehicle.
2. Remove the front wheels.
3. If inspection reveals worn or damaged brake pads, replace the pads.
- Minimum brake pad thickness: 0.08 inches (2.0 mm)
4. Replace both pads if either pad is less than the required thickness, cracked, unevenly worn or oil soaked.
