Mirrors: Service and Repair

REMOVAL

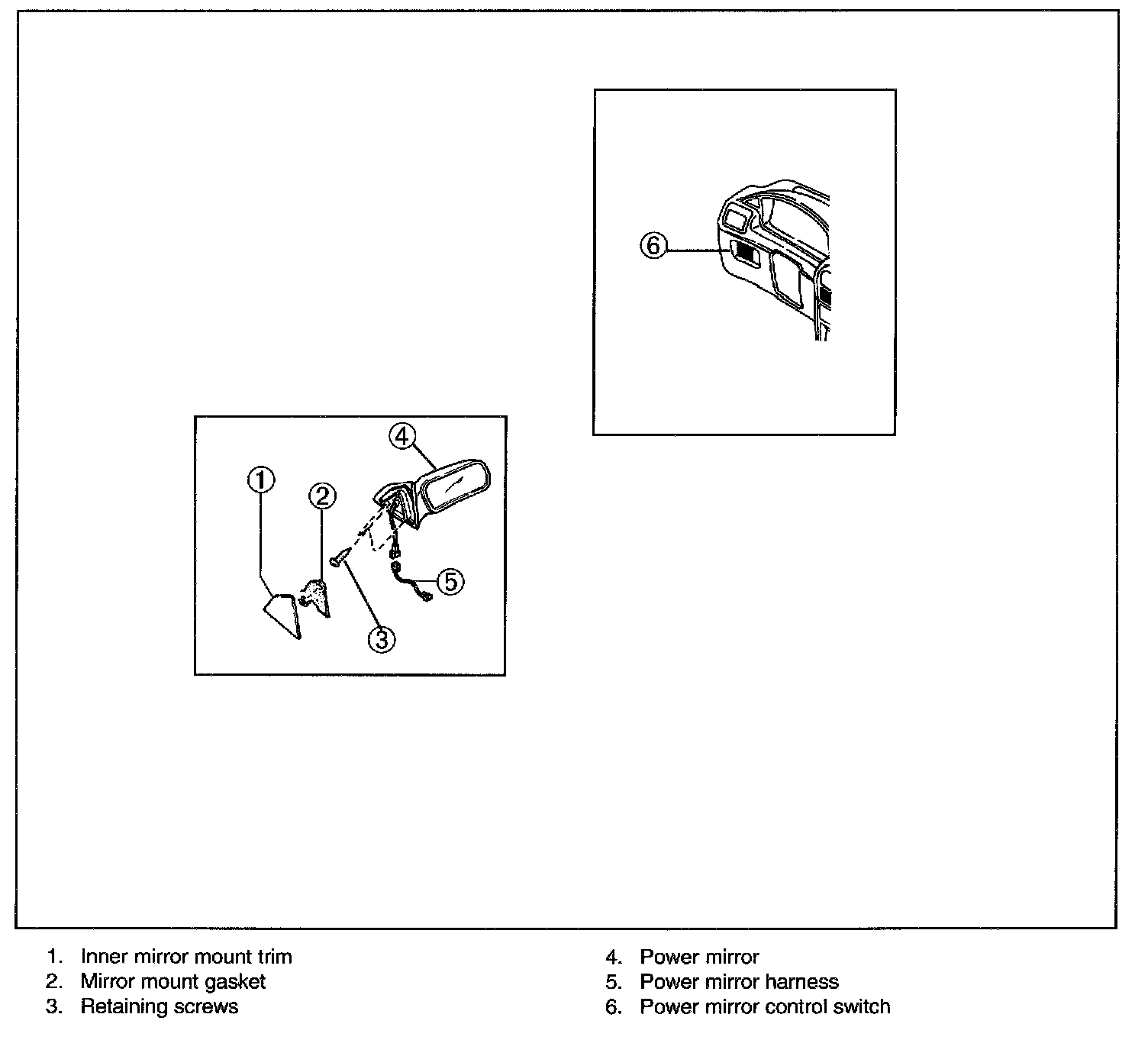

Power mirror





1. Pry off the inner trim.

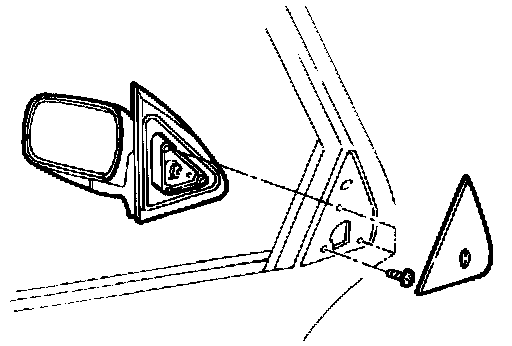

2. Remove the three screws shown in the figure.

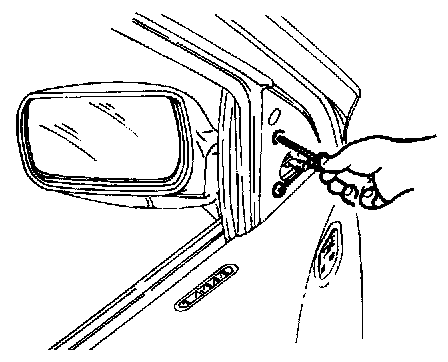

3. Remove the door mirror using a screwdriver.
4. Disconnect the power mirror harness.

REMOVAL

Door mirror
Install in the reverse order of removal.

Door mirror glass

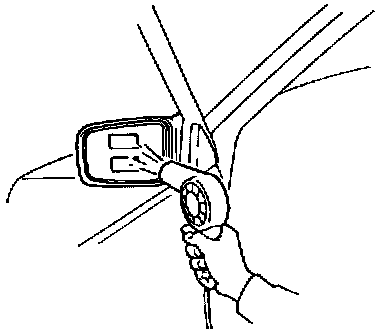

1. Warm the frame and power mirror glass using a heat gun.

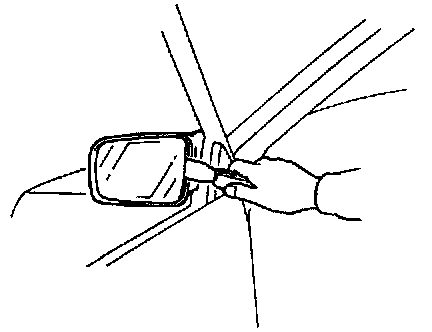

2. Insert a scraper between the mirror glass and the frame and then carefully pry the mirror loose.
3. Remove the remaining adhesive.


INSTALLATION

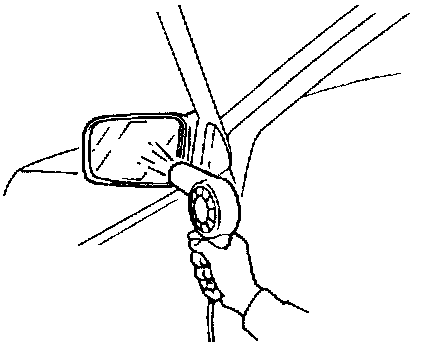

1. Warm the frame using a heat gun.





2. Apply an appropriate adhesive to the back side of the new mirror glass.

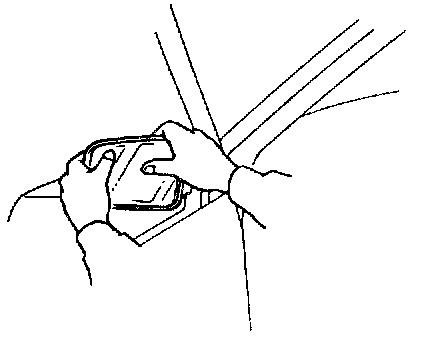

3. Install the new mirror glass in the frame. Gently press in place to secure.
