Rear Cross-Member: Service and Repair

REMOVAL
1. Lift the vehicle and support it with safety stands.
2. Remove the wheels and tires.
3. Refer to Brake System, section 52, for instructions on disconnecting the brake lines. Disconnect the two brake line connections at points A, then remove the single bolt and "T" fitting at B.

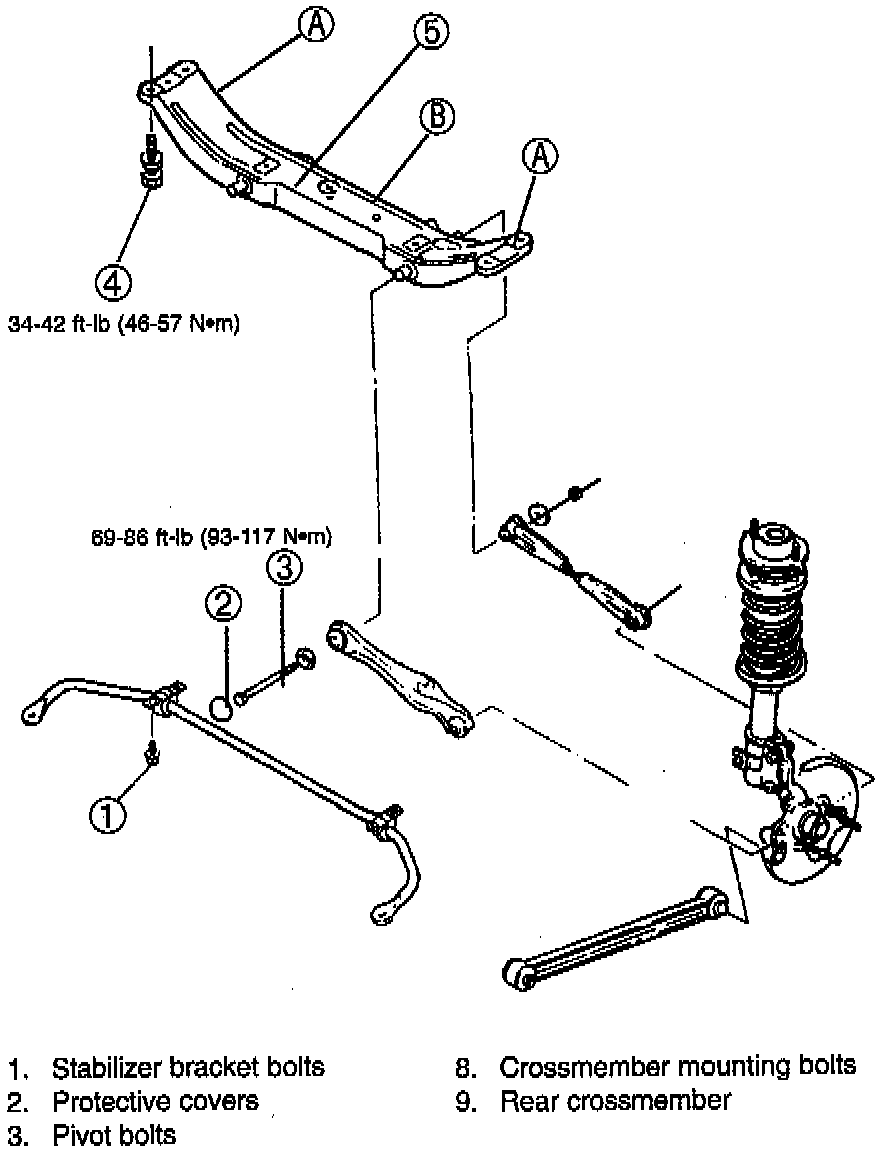

4. Remove in the order shown in the figure.

INSPECTION
Inspect all parts and repair or replace as necessary.

INSTALLATION
1. Install in the reverse order of removal.
2. After installation, check the rear wheel alignment and adjust if necessary.

NOTICE: Tighten the lateral link Pivot bolts to the specified torque before lowering the vehicle (unloaded condition).
