Sensor Rotor

FRONT
Removal
1. Remove the front driveshaft that has the defective rotor. Refer to Transmission and Drivetrain.

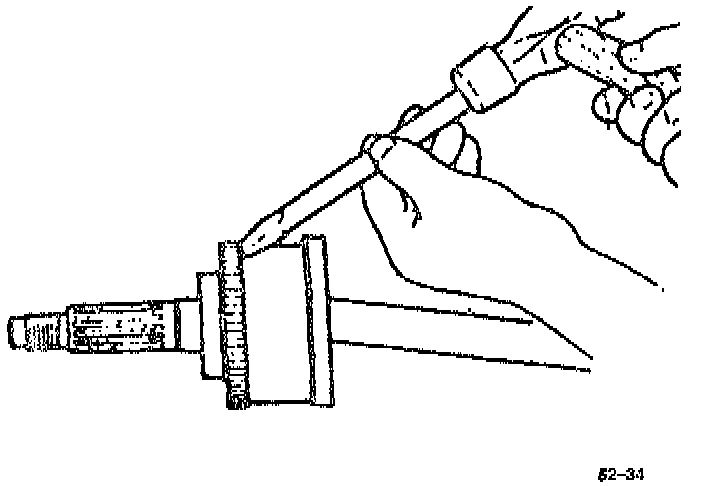

2. Remove the rotor with a chisel. Do not re-install a rotor once it is removed.

Installation

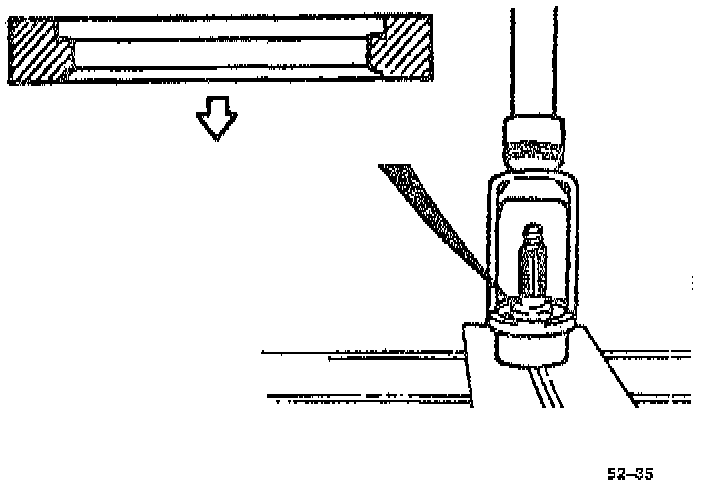

1. Locate a new sensor rotor on the driveshaft as shown.
2. Press the rotor onto the shaft.
3. Reinstall the driveshaft. Refer to Transmission and Drivetrain.





REAR
The rear rotor is replaced as a unit with its hub. Refer to Transmission and Drivetrain.
