ABS Light: Testing and Inspection

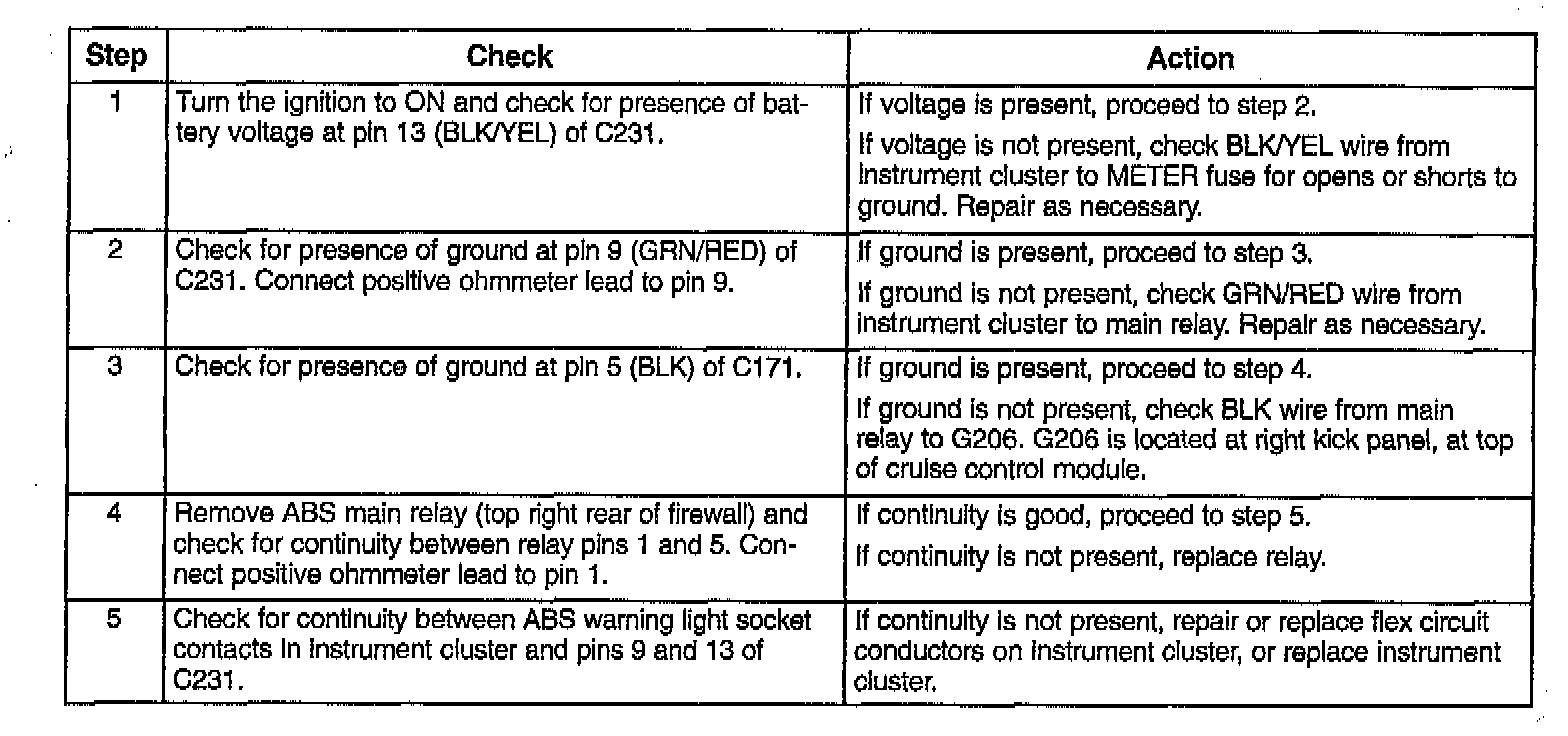

PRELIMINARY CHECK
Remove the METER fuse and check. Remove three screws at the top of the instrument cluster bezel and remove bezel. Remove four screws and instrument cluster. Remove ABS warning light bulb and check its condition.

NOTE: If the ABS warning light flashes intermittently when ignition is first turned ON, check the Data Link Connector (DLC) in the engine compartment for the presence of a jumper between the ABS out-pin and the GND pin. Refer to the ABS Wiring Diagram. Electrical Diagrams
