Radiator Cooling Fan Motor: Testing and Inspection

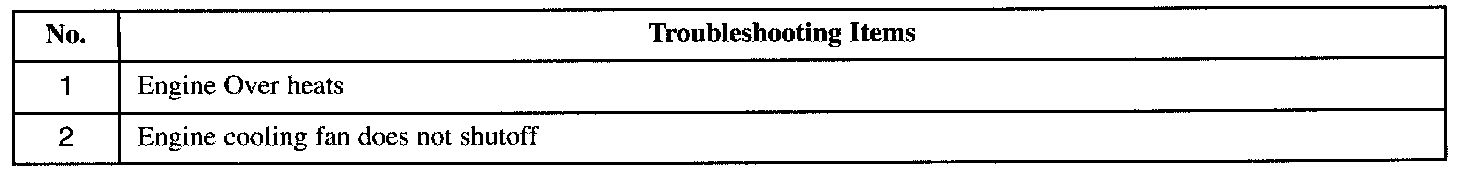

Troubleshooting Guide


Preliminary Check: Inspect coolant level over flow reservoir for proper fluid level. Add coolant as necessary.

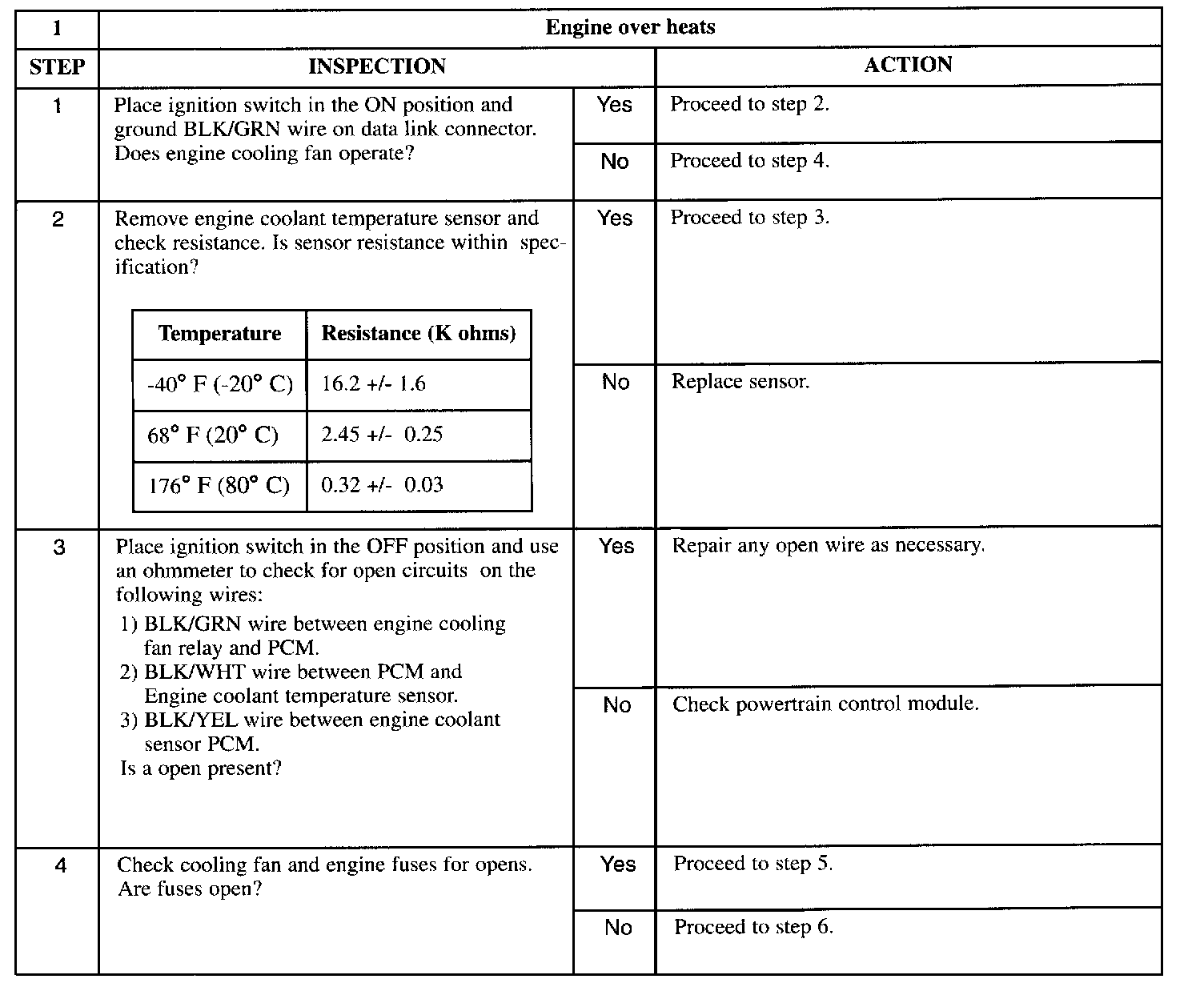

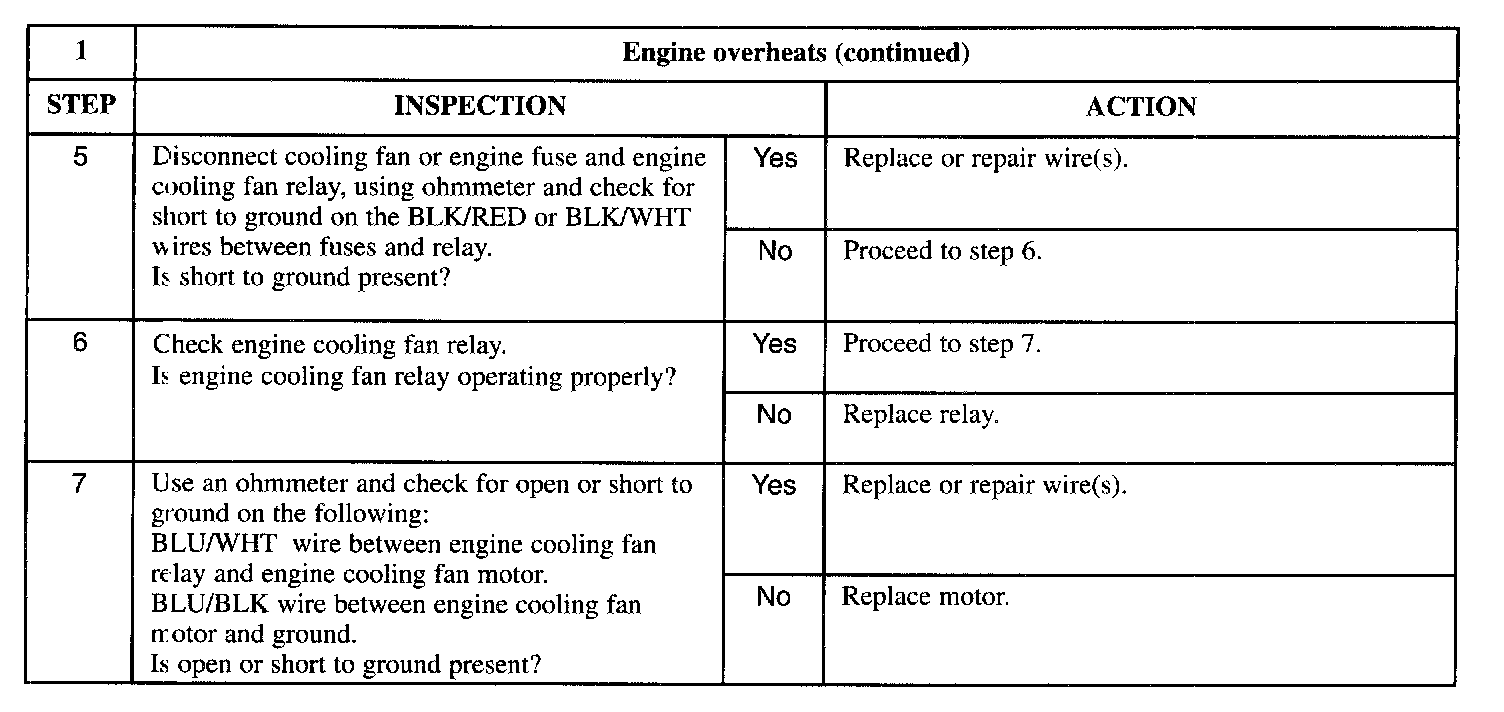

1. Engine Overheats

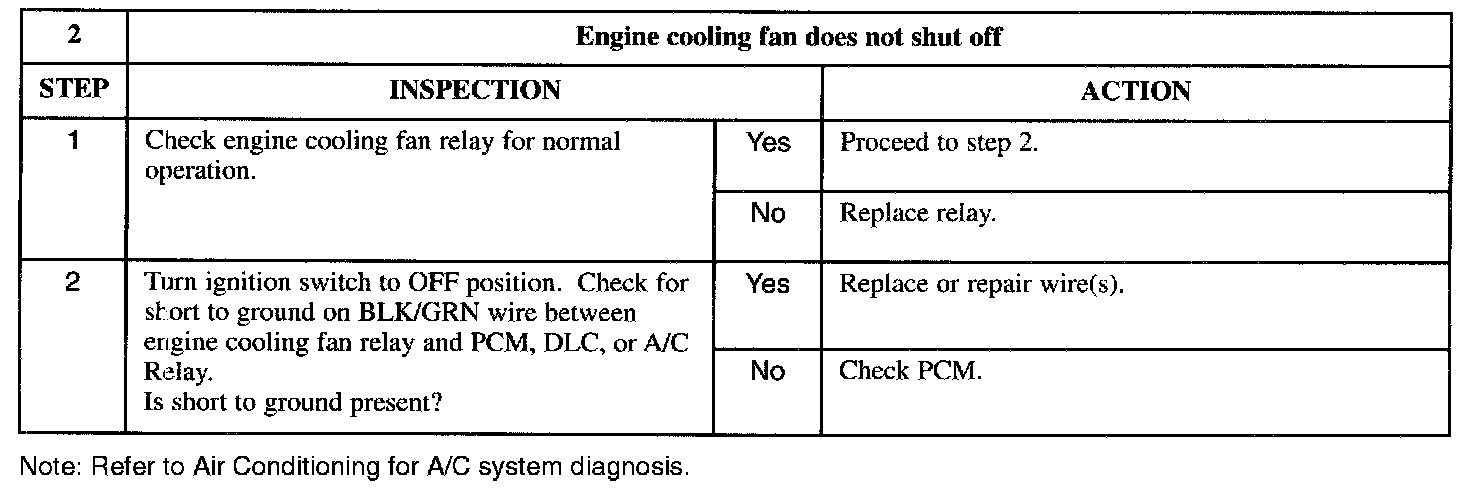

2. Engine Cooling Fan Does Not Shut Off
