Rear

1. Raise and properly support rear of vehicle.
2. Remove rear wheels.

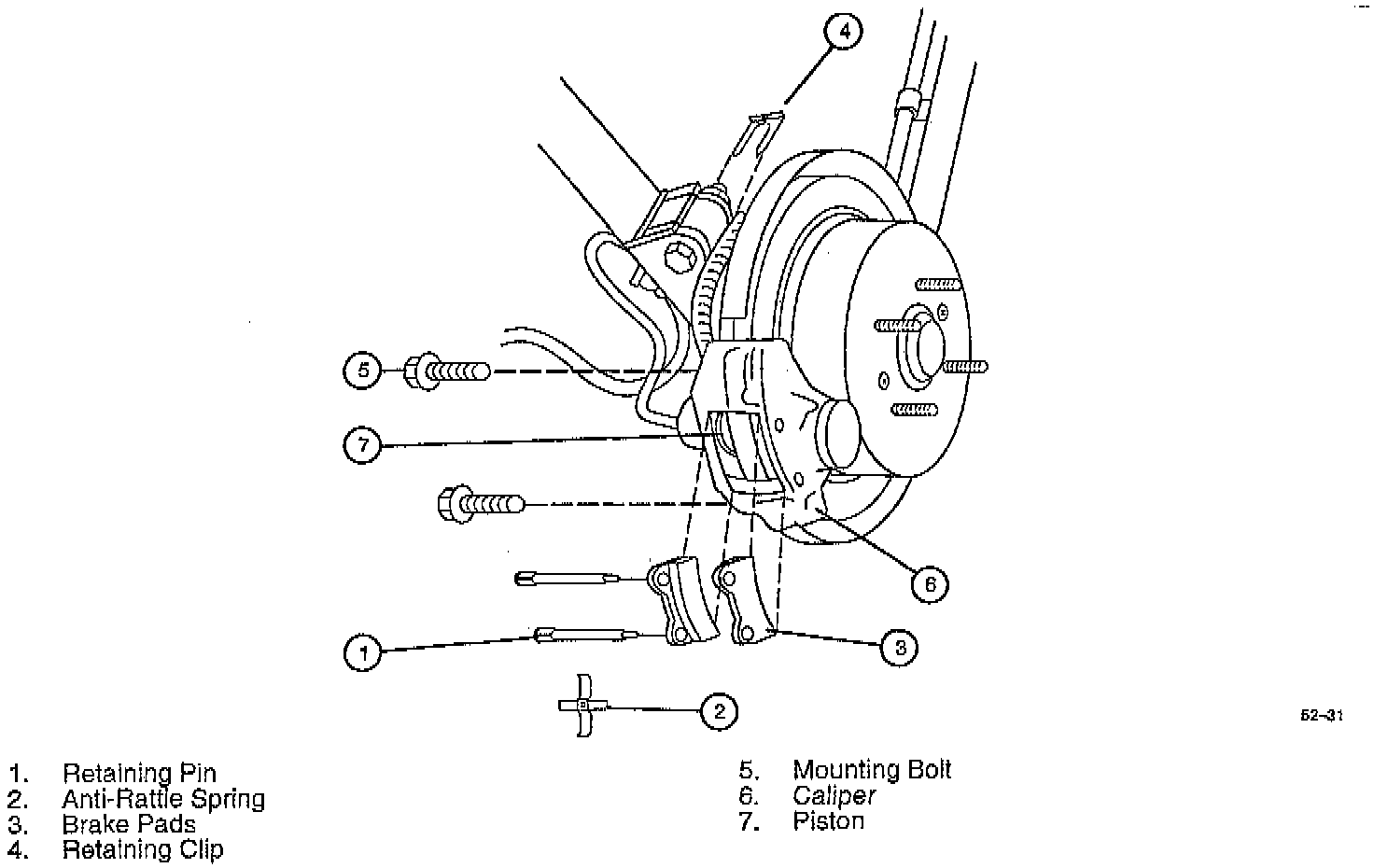

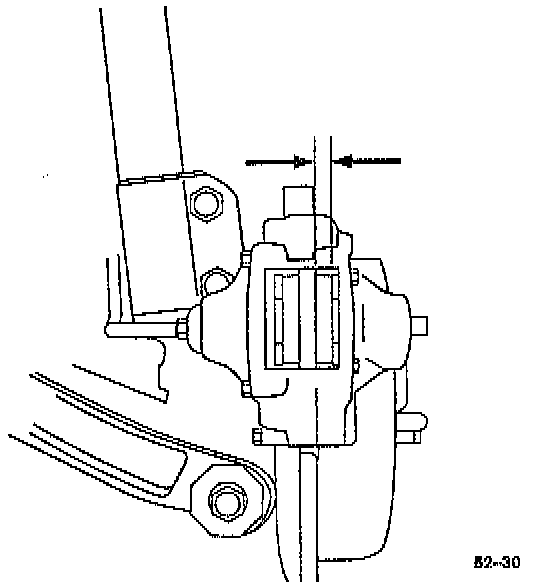

3. Inspect brake pads through the opening in the caliper.
4. Replace both pads if either is less than the required thickness, or appears cracked, unevenly worn, or oil soaked.
- Minimum brake pad thickness: 1.50 mm (0.06 inches).
