System Inspection

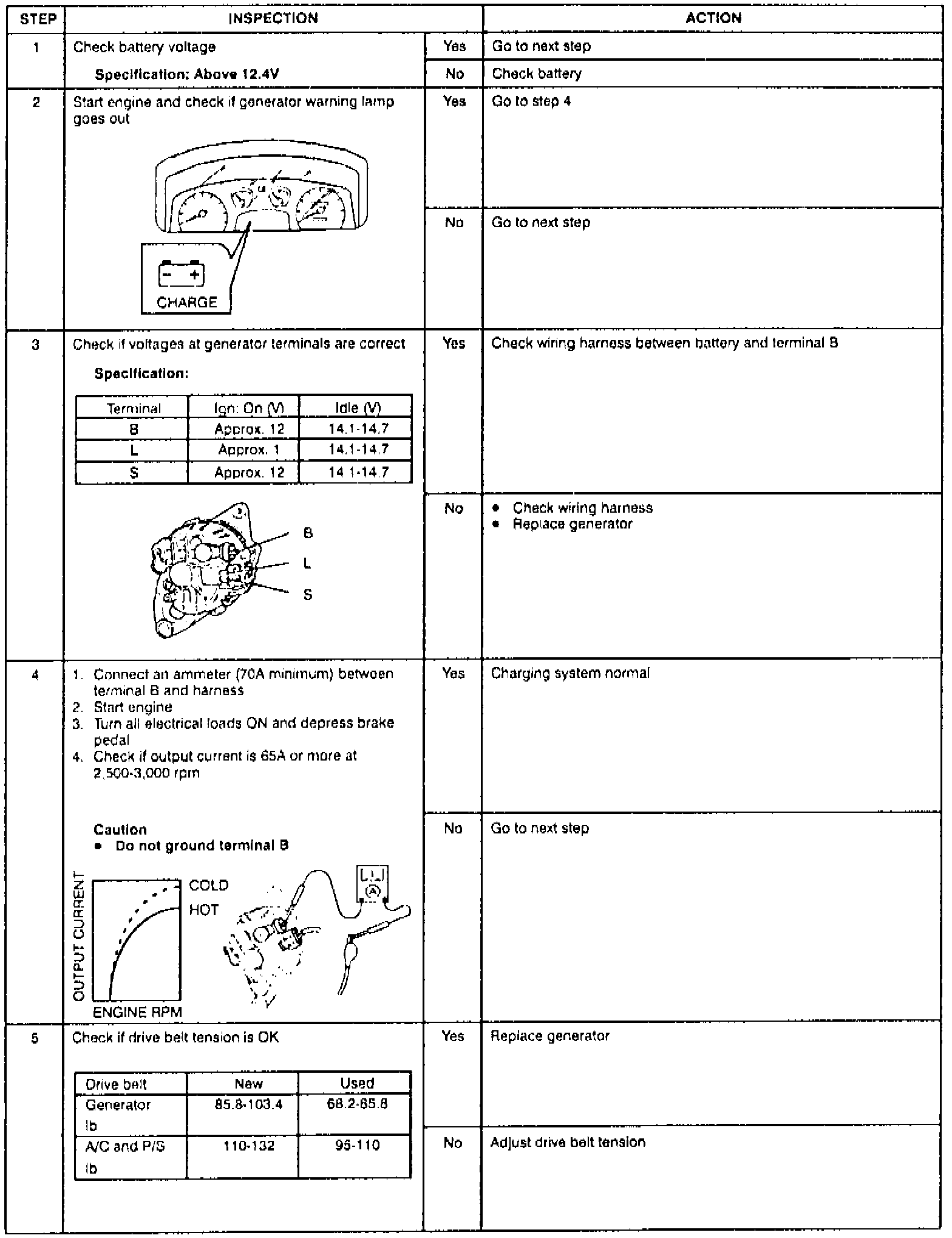

Fig. 1 Alternator Diagnosis:
Refer to
Fig. 1
for
alternator
system diagnosis and testing.
