Power Steering Pressure Switch: Service and Repair


Replacement

Replacement:

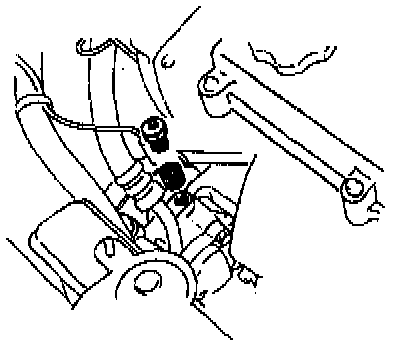

1. Replace the PSP switch as shown in the figure.

Tightening torque: 19-21 ft-lbs (25-29 N.m)
