Evaporative Emission Control Canister: Testing and Inspection

INSPECTION PROCEDURE

1. Remove the evaporative emission canister.

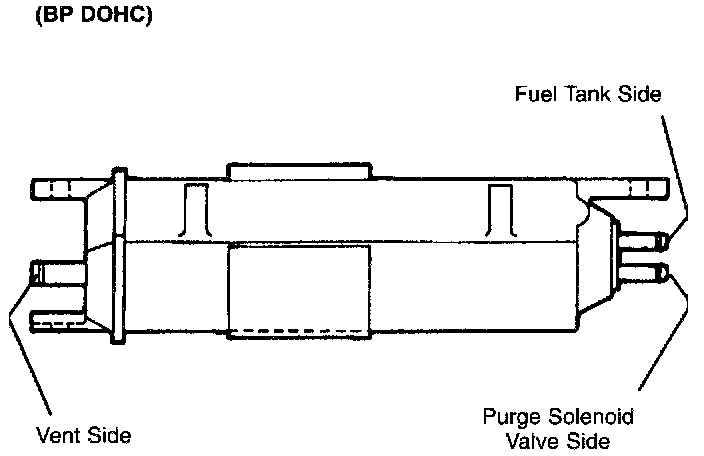

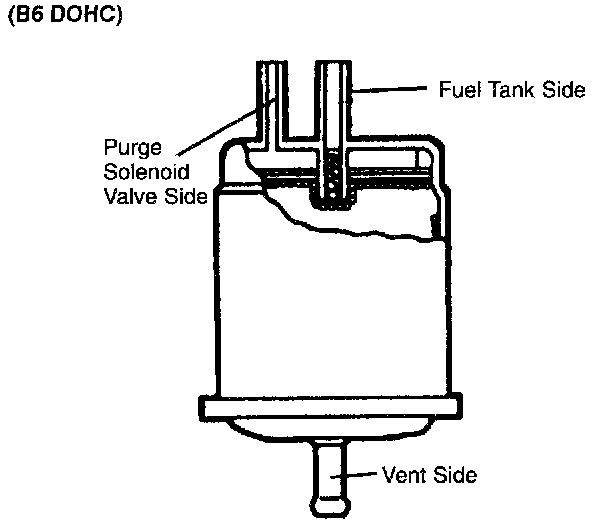

2. Plug the evaporative emission canister vent side port and purge solenoid valve side port.
3. Blow air into the fuel tank side port and verify that there are no air leaks.
4. Replace the evaporative emission canister if there are any air leaks.
