Camber & Caster

1. Raise and support front of vehicle.

Fig. 1 Mounting Block Nuts:

2. Remove mounting block nuts, Fig. 1.

Fig. 2 Mounting Block Adjustment Positions:

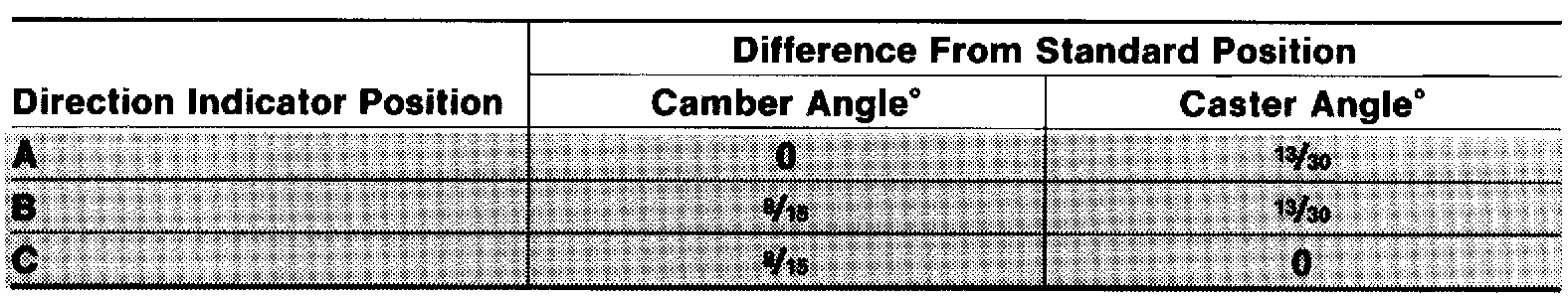

Fig. 3 Camber & Caster Adjustment:

3. Push mounting block downward, Fig. 2, and turn to desired position, Fig. 3, to adjust camber and caster angles.
4. Install and torque mounting nuts to 17-22 ft. lbs.
