Home >> Kia >> 1996 >> Sephia Sedan L4-1.8L >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Switch Testing

Switch Testing

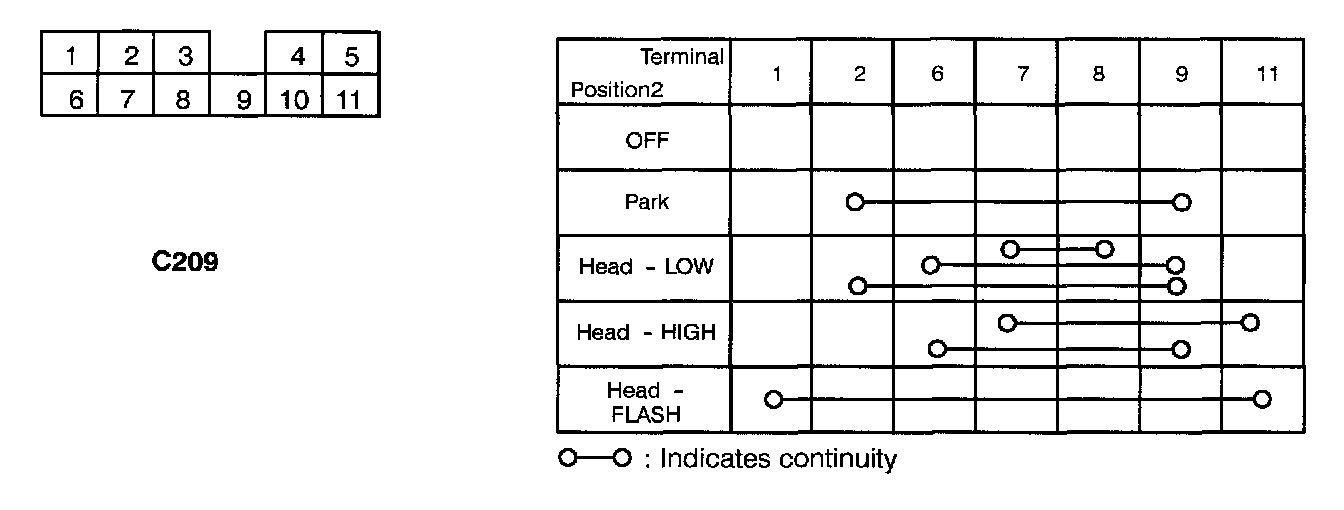

Check for continuity between pins of C209 with an ohmmeter.
