System Diagram

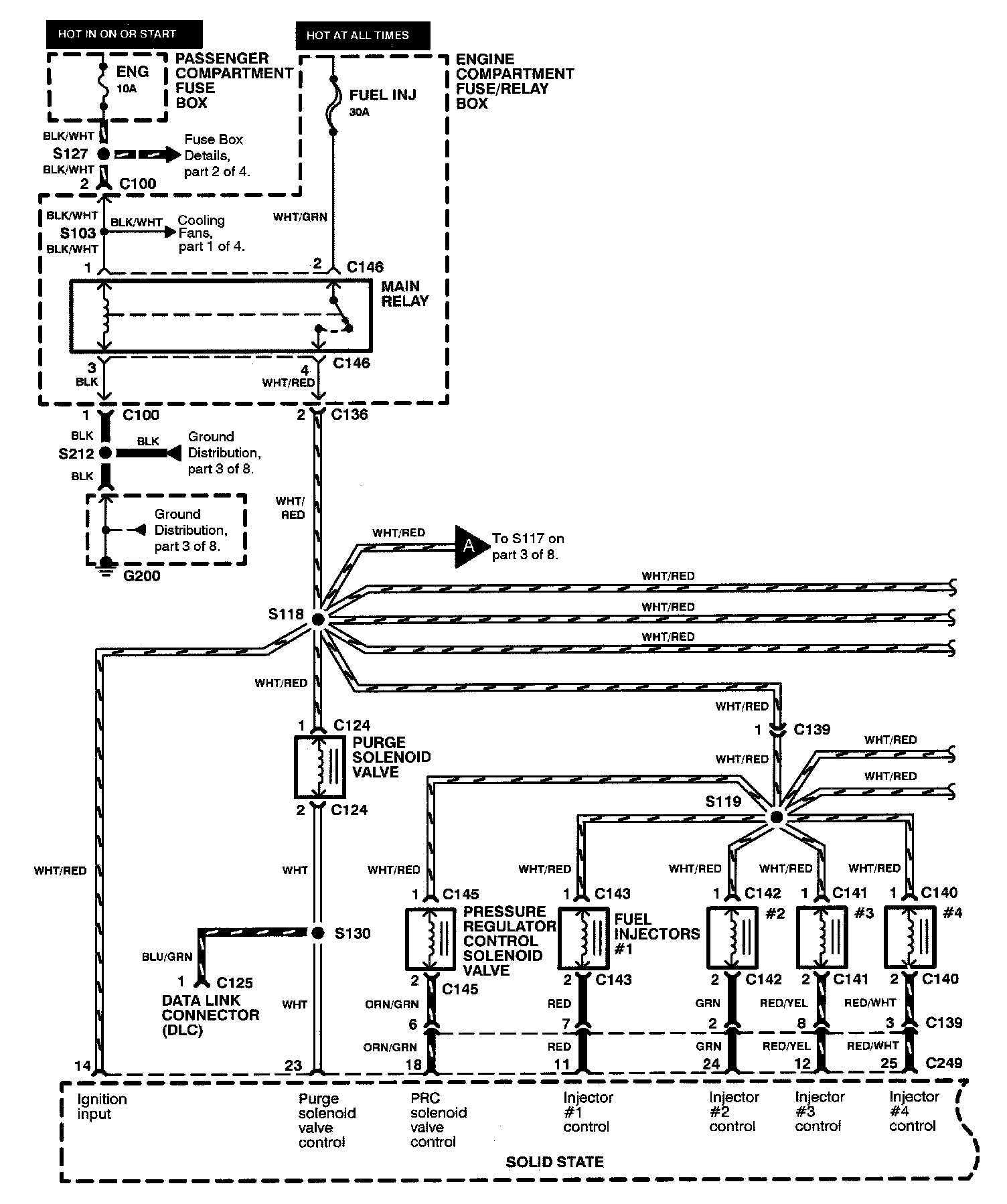

sequential Multiport Fuel Injection (SFI) (Part 1 Of 8):

Sequential Multiport Fuel Injection (SFI) (Part 1 Of 8)
Engine Compartment Fuse/Relay Box
Fuel Injectors #1
Main Relay
Purge Solenoid Valve
Passenger Compartment Fuse Box
Pressure Regulator Control Solenoid Valve

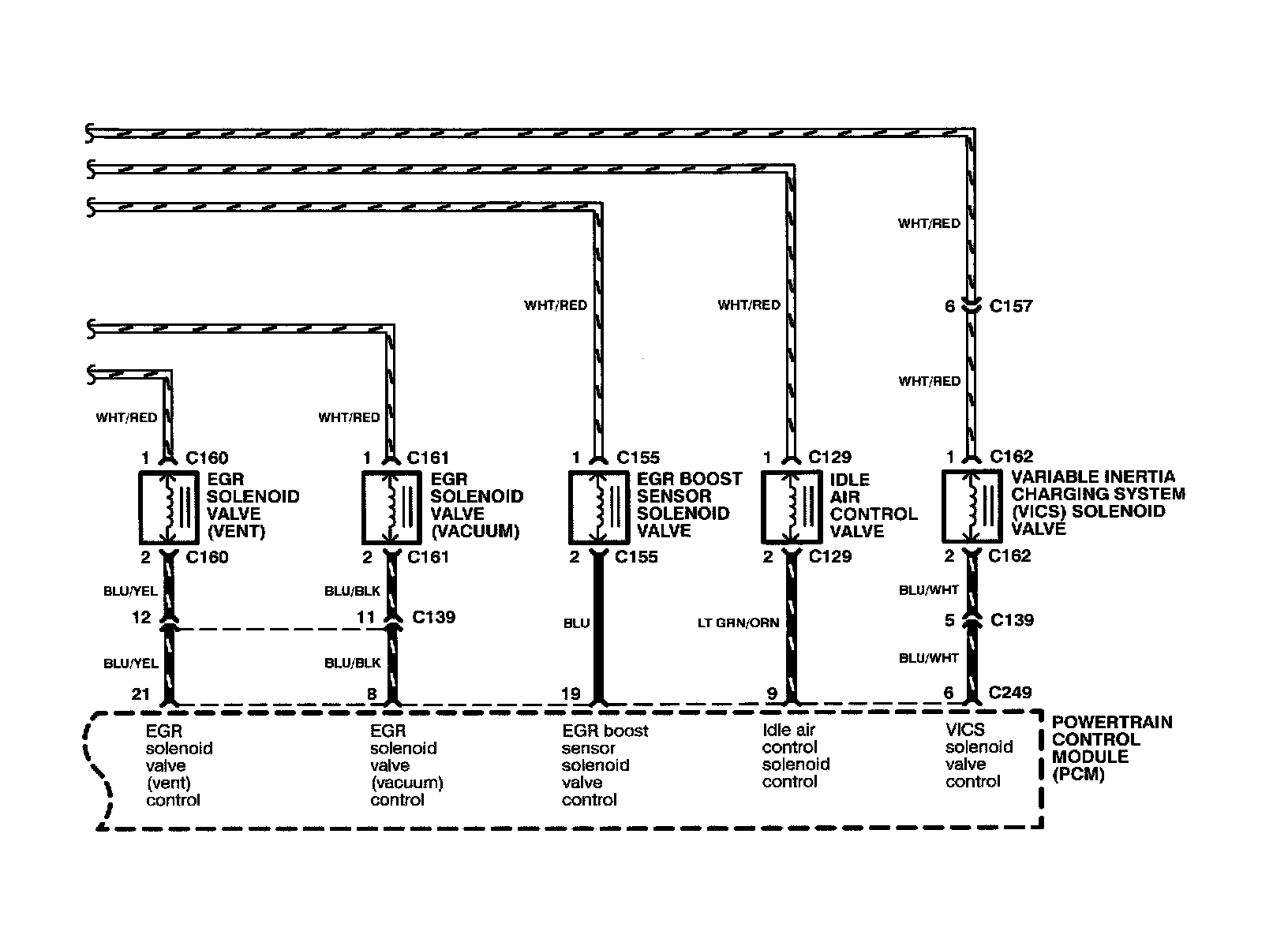

sequential Multiport Fuel Injection (SFI) (Part 2 Of 8):

Sequential Multiport Fuel Injection (SFI) (Part 2 Of 8)
EGR Solenoid Valve (Vent)
EGR Solenoid Valve (Vacuum)
Idle Air Control Valve
Powertrain Control Module (PCM)
Variable Inertia Charging System (VICS) Solenoid Valve

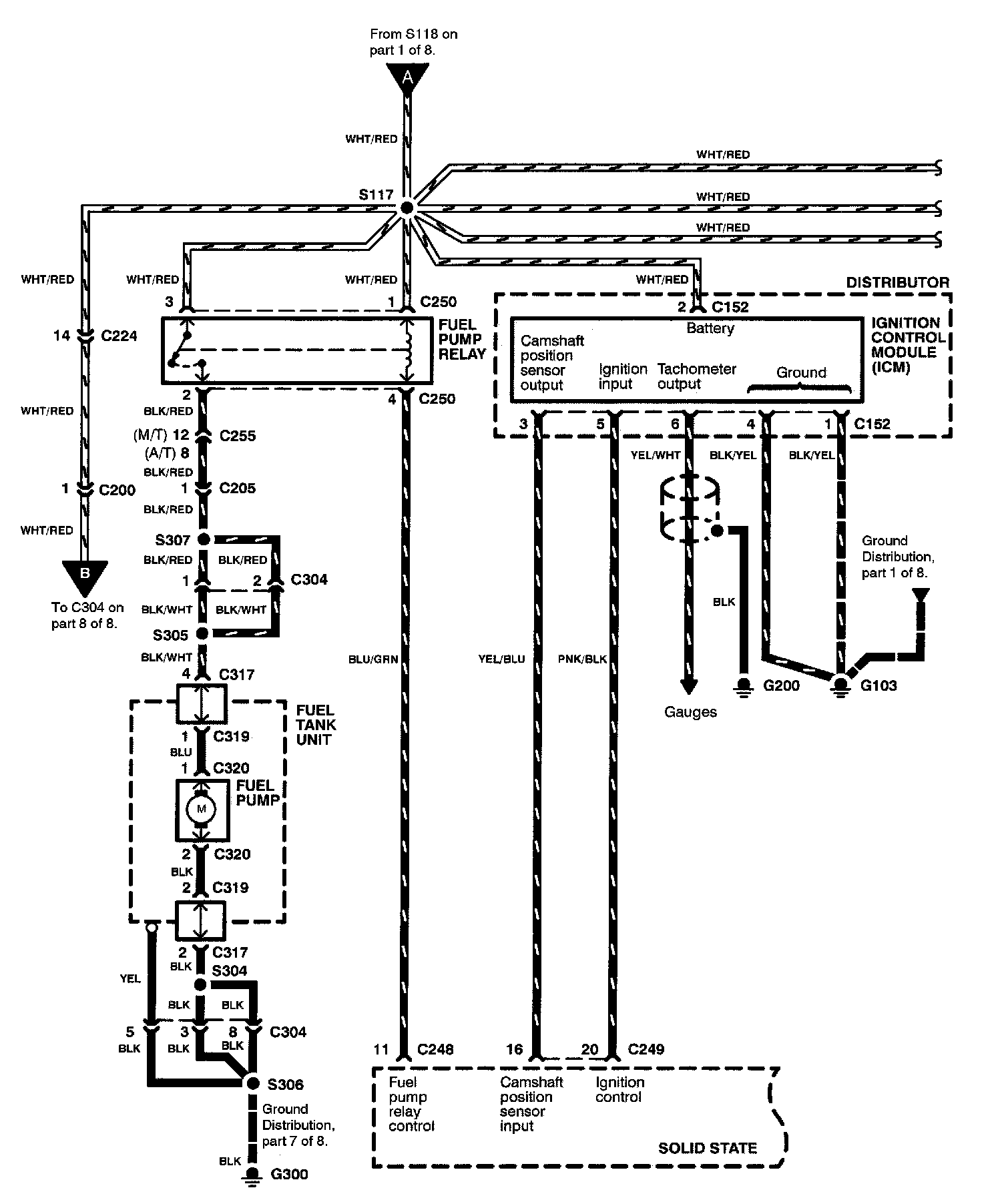

sequential Multiport Fuel Injection (SFI) (Part 3 Of 8):

Sequential Multiport Fuel Injection (SFI) (Part 3 Of 8)
Distributor
Data Link Connector (DLC)
Fuel Pump Relay
Fuel Pump
Fuel Tank Unit
Ignition Control Module (ICM)

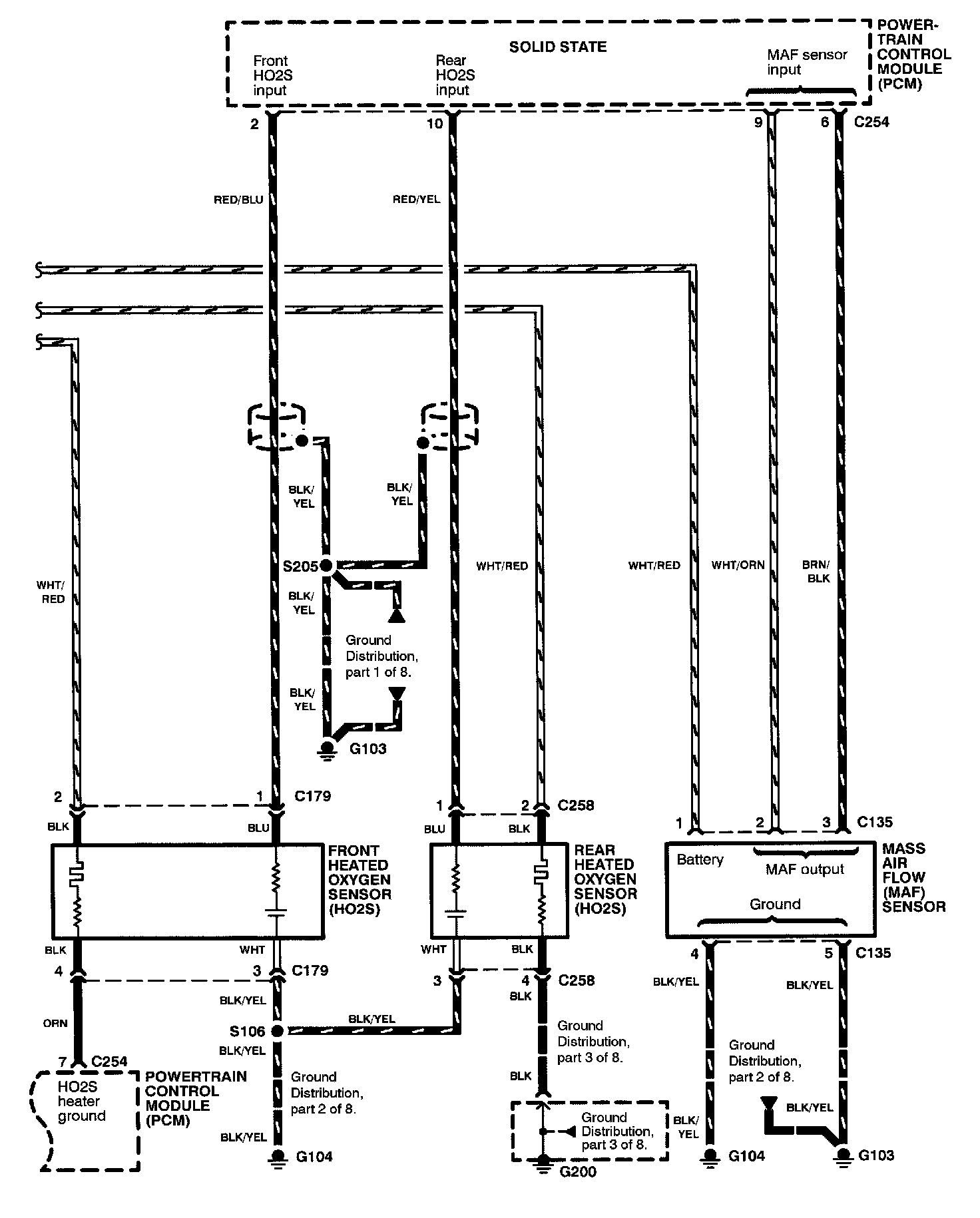

sequential Multiport Fuel Injection (SFI) (Part 4 Of 8):

Sequential Multiport Fuel Injection (SFI) (Part 4 Of 8)
Front Heated Oxygen Sensor (HO2S)
Mass Air Flow (MAF) Sensor
Powertrain Control Module (PCM)
Rear Heated Oxygen Sensor (HO2S)
Transaxle Fluid Temperature Sensor

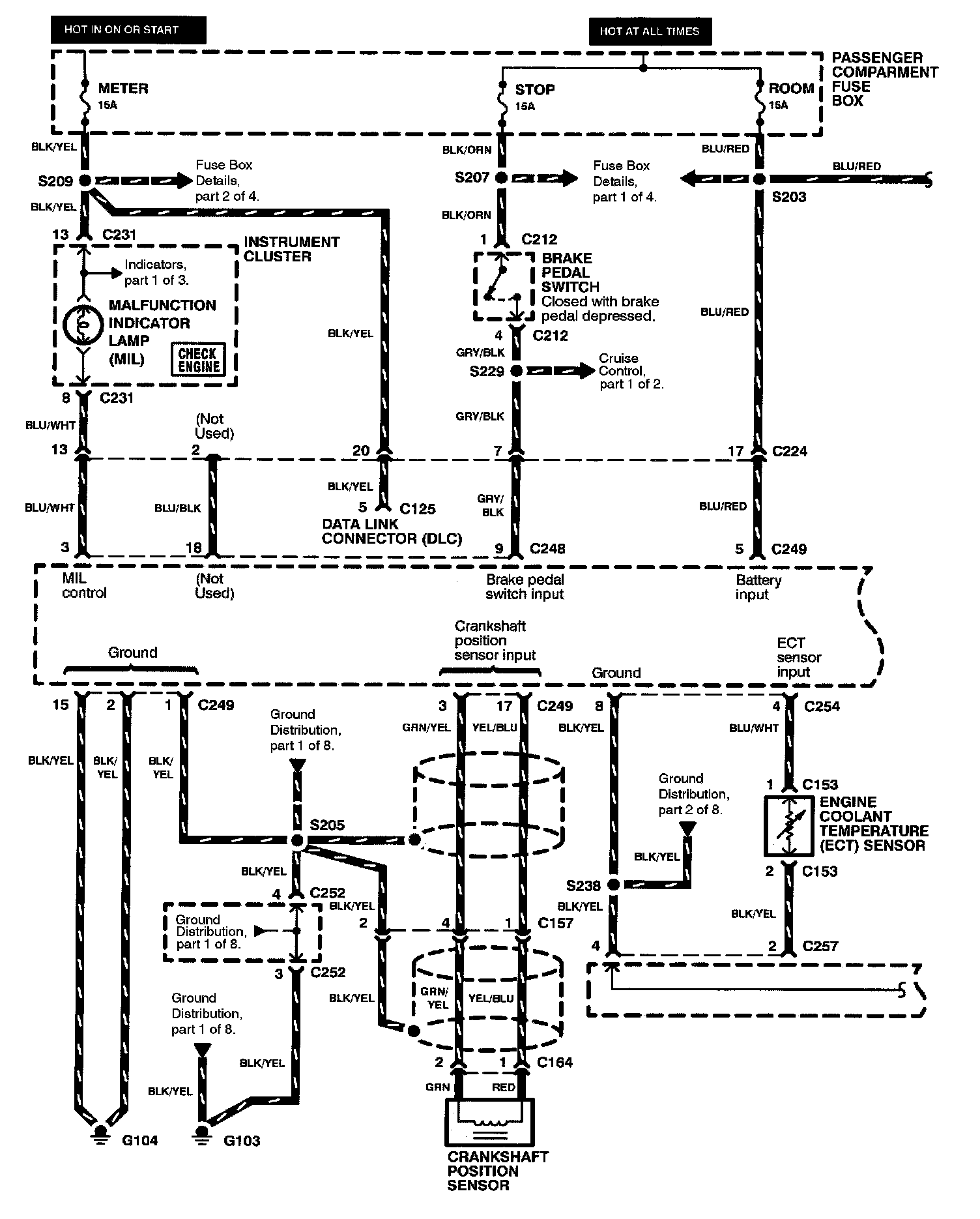

sequential Multiport Fuel Injection (SFI) (Part 5 Of 8):

Sequential Multiport Fuel Injection (SFI) (Part 5 Of 8)
Brake Pedal Switch
Crankshaft Position Sensor
Data Link Connector (DLC)
Engine Coolant Temperature (ECT) Sensor
Instrument Cluster
Malfunction Indicator Lamp (MIL)
Passenger Compartment Fuse Box

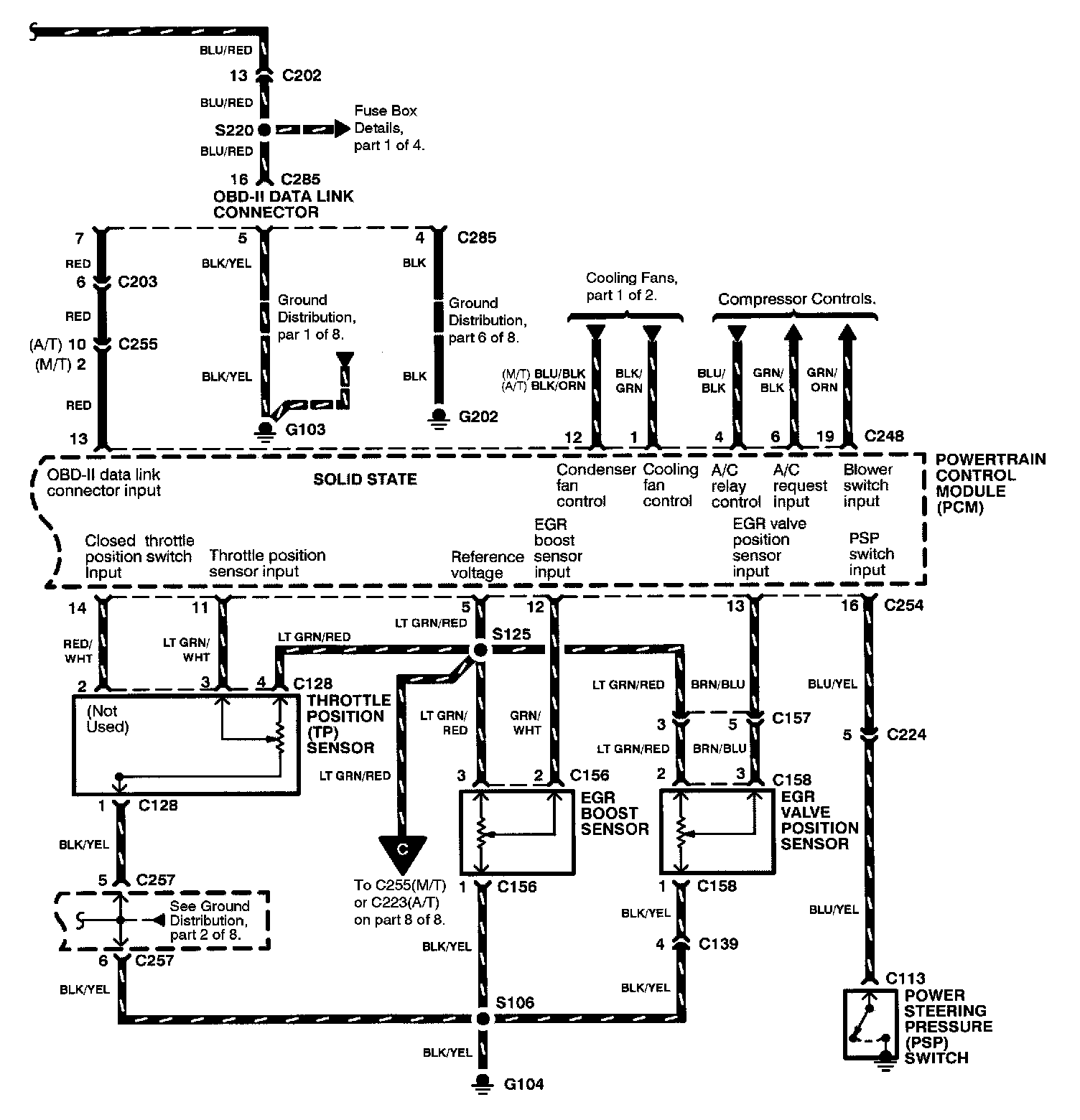

sequential Multiport Fuel Injection (SFI) (Part 6 Of 8):

Sequential Multiport Fuel Injection (SFI) (Part 6 Of 8)
Data Link Connector
EGR Boost Sensor
EGR Valve Position Sensor
Power Steering pressure (PSP) Switch
Powertrain Control Module (PCM)
Throttle Position (TP) Sensor

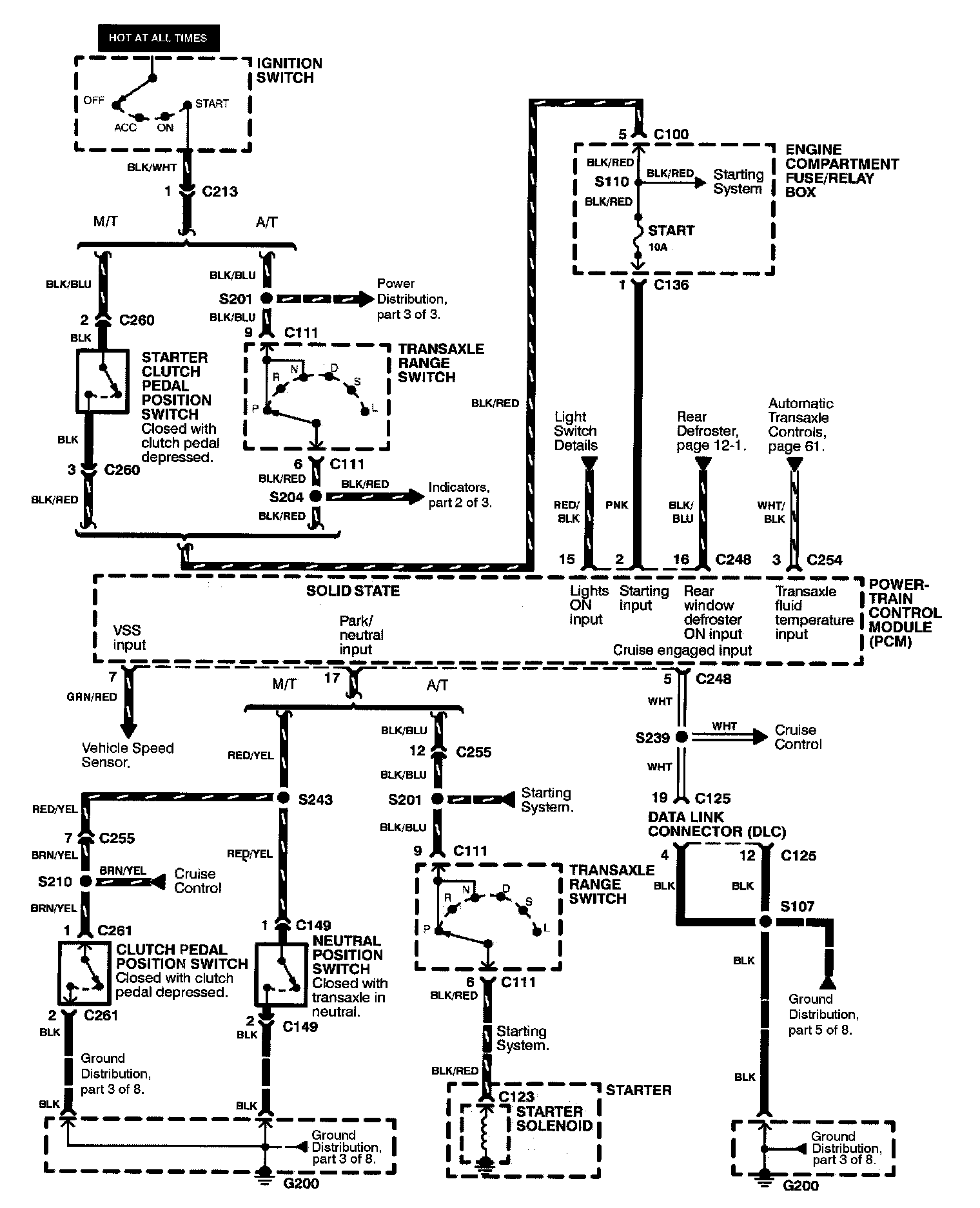

sequential Multiport Fuel Injection (SFI) (Part 7 Of 8):

Sequential Multiport Fuel Injection (SFI) (Part 7 Of 8)
Clutch Pedal Position Switch
Data Link Connector (DLC)
Engine Compartment Fuse/Relay Box
Ignition Switch
Neutral Position Switch
Powertrain Control Module (PCM)
Starter
Starter Solenoid
Starter Clutch Pedal Position Switch
Transaxle Range Switch

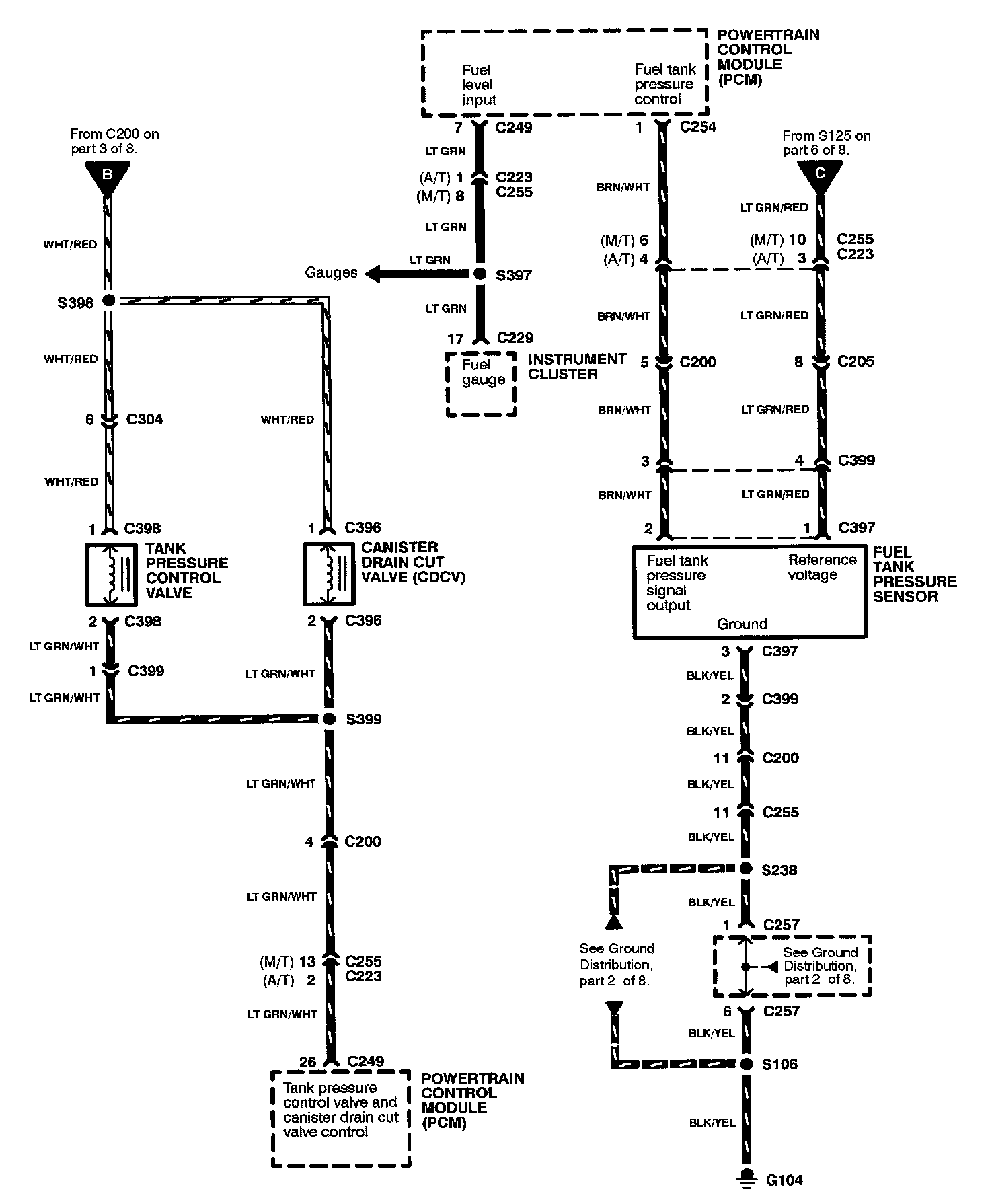

sequential Multiport Fuel Injection (SFI) (Part 8 Of 8):

Sequential Multiport Fuel Injection (SFI) (Part 8 Of 8)
Canister Drain Cut Valve (CDCV)
Fuel Tank Pressure Sensor
Instrument Cluster
Powertrain Control Module (PCM)
Tank Pressure Control Valve
