Brake Caliper: Service and Repair

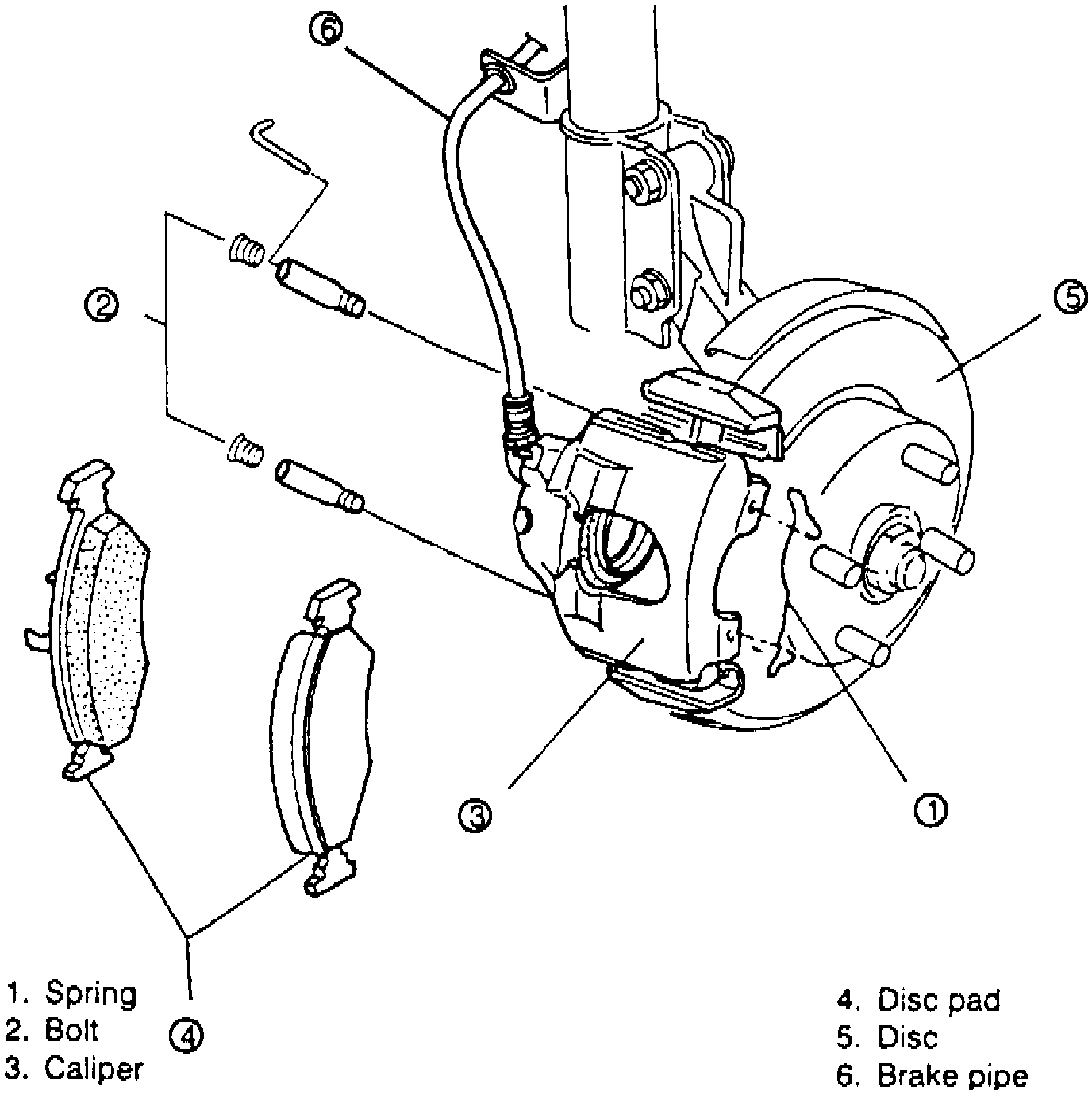

Fig. 1 Disc Brake Pad & Caliper Replacement:

1. Remove caliper in numbered sequence shown in Fig. 1.
2. Reverse procedure to install.
