Wiper Motor: Testing and Inspection

1. Disconnect the wiper motor connector (C103).

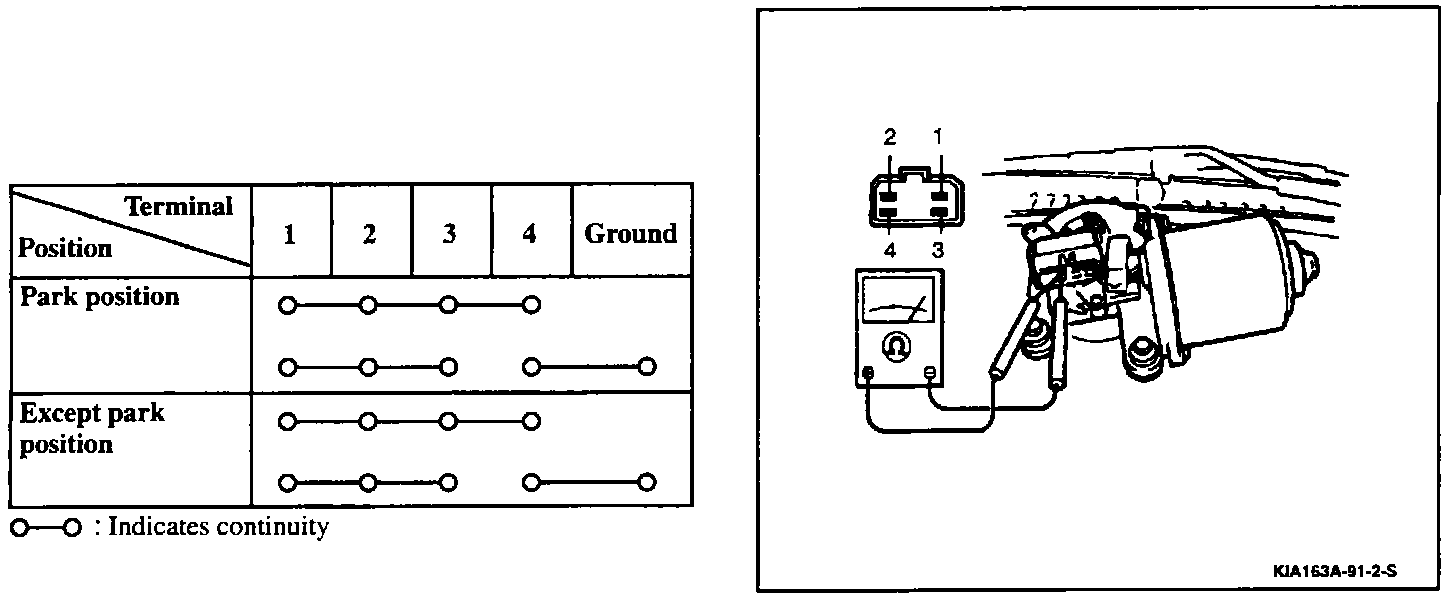

Circuit Testing-Wiper Motor:

2. Check for continuity between terminals as indicated.
3. If not as specified, replace the wiper motor.

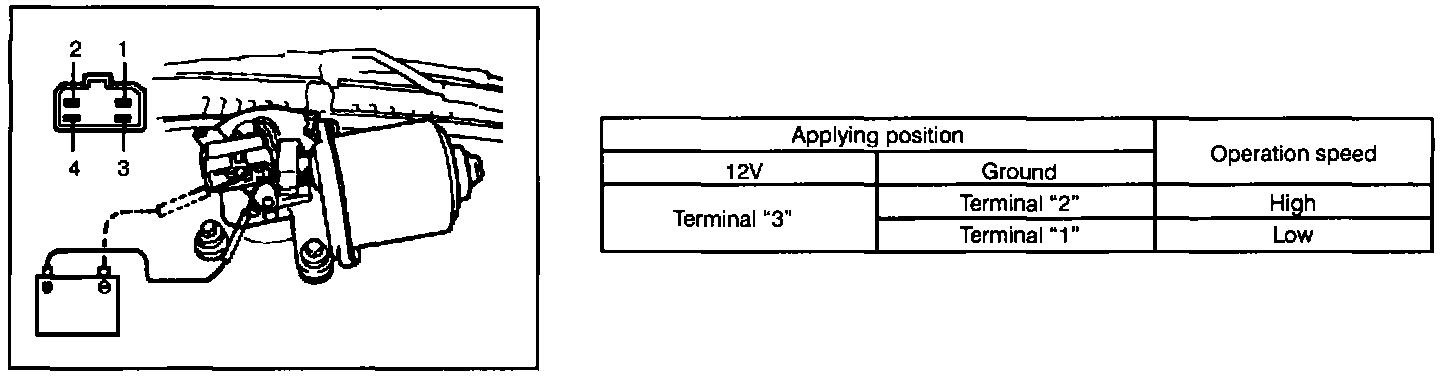

Wiper/Washer-Circuit Testing:

4. Check operation by applying 12 V to the terminals of the wiper motor indicated below.
5. If not as specified, replace the wiper motor.
