Front Door Window Regulator: Service and Repair

Notice: There is no stand alone Front Door Window Regulator article authored by the manufacturer. This information was extracted from the Front Door Removal article.

Front Door Window Regulator Removal and Installation

Front door glass and regulator
1. Lower door glass to full down position.

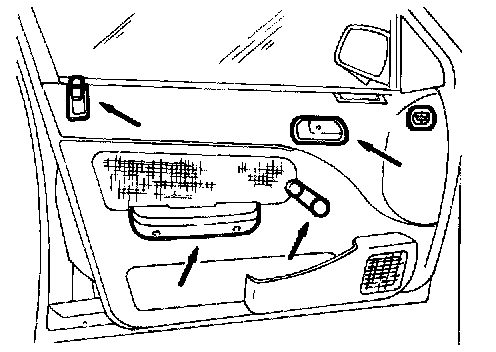

2. Remove the inner handle, the arm rest, the window lift handle, and the door trim panel (arrows).

NOTICE
For vehicles with power windows and power door locks, disconnect the harness connector

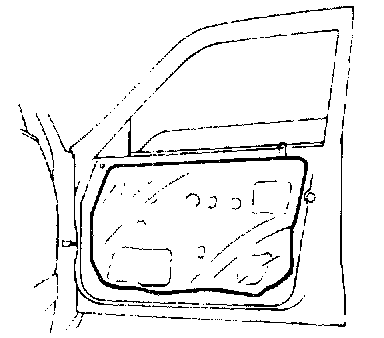

3. Peel away the moisture barrier.

NOTICE
Peel the moisture barrier away carefully so that it can be reused.





4. Remove the speaker from the door (arrow).

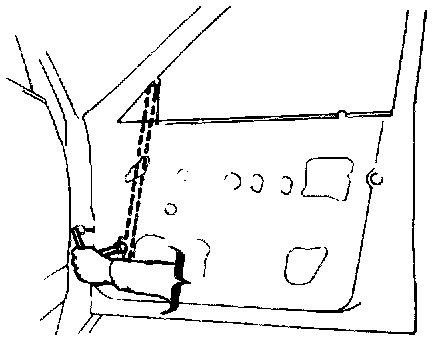

5. Remove the door glass channel installation bolts, and then remove the door glass channel.

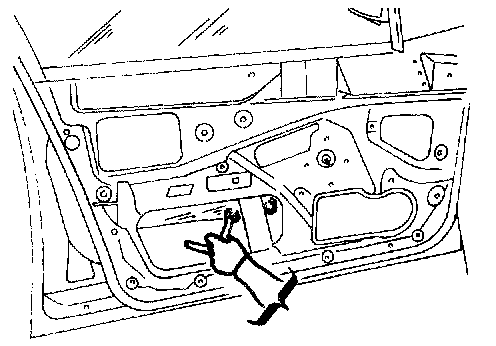

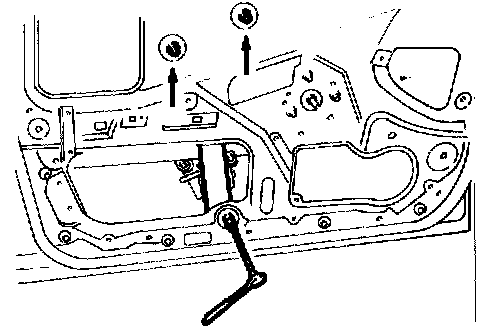

6. Remove the door glass mounting bolts.





7. Remove the door glass upward.

CAUTION
Remove the glass carefully to avoid breakage.

8. Remove the glass channel and weatherstrip.

NOTICE
Glass run channel and channel support are a Single unit.

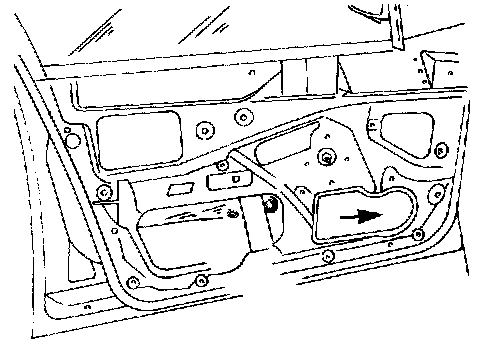

9. Remove the regulator installation bolts (3 each), and then remove the regulator through the access hole.

10. Installation is the reverse of removal.
