Windows: Testing and Inspection

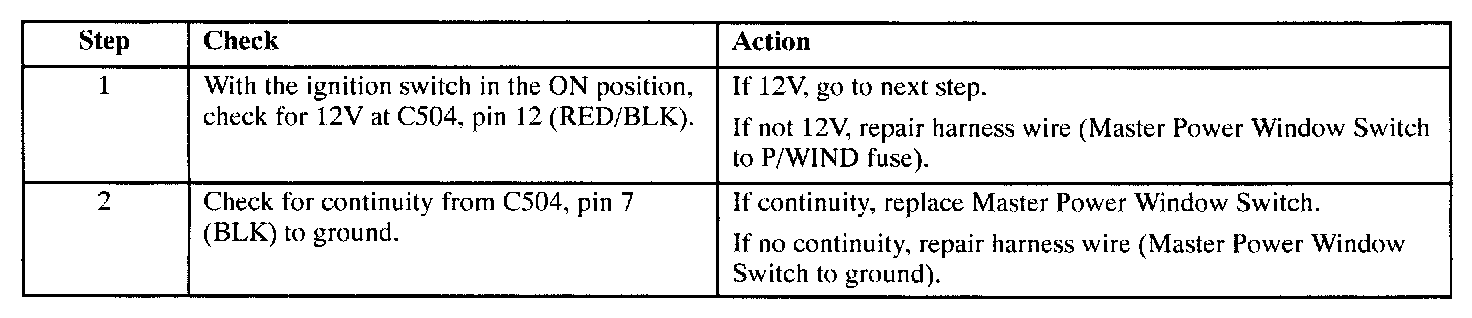

None of the Power Windows Operate

Preliminary Check: Check condition of P/WIND fuse. If fuse is open, locate and repair source of overload. Replace fuse, Verify battery voltage (12 V) at P/WIND fuse. If no battery voltage, check battery and fuse box.

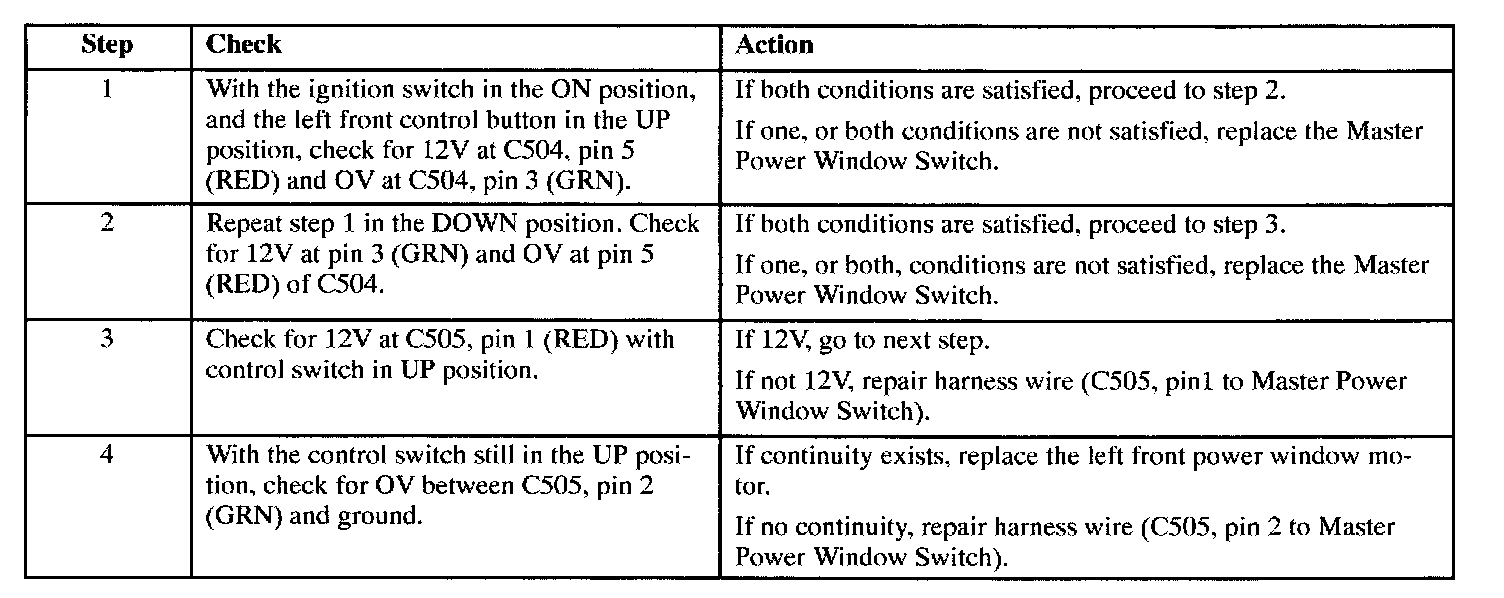

Drivers Power Window Does Not Operate

Preliminary Check: Verify that the other windows operate. If they do not, first perform procedure for None of the Power Windows Operate, above.

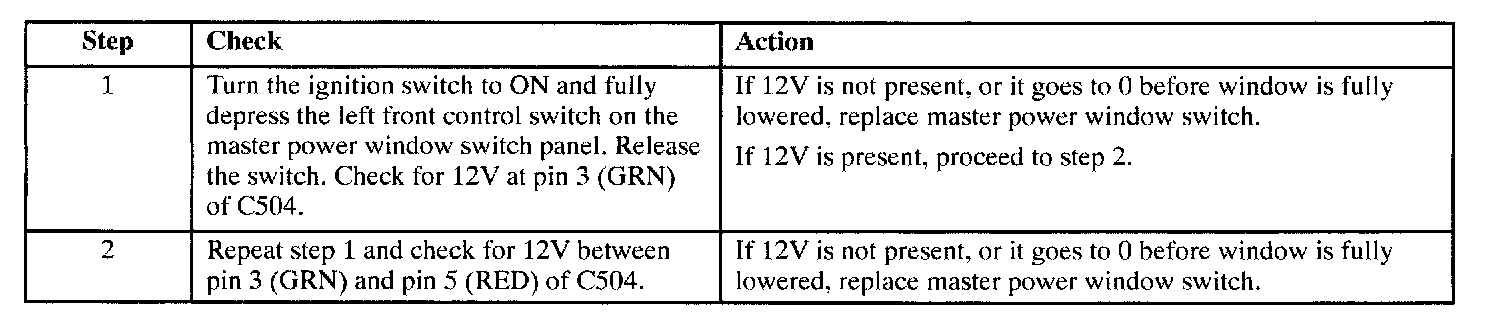

Automatic Drivers Window Lowering Does Not Operate

Preliminary Check: Verify that the drivers window has normal up and down control. If it does not, first perform procedure for Drivers Power Window Does Not Operate, above.
