Symptom Related Diagnostic Procedures

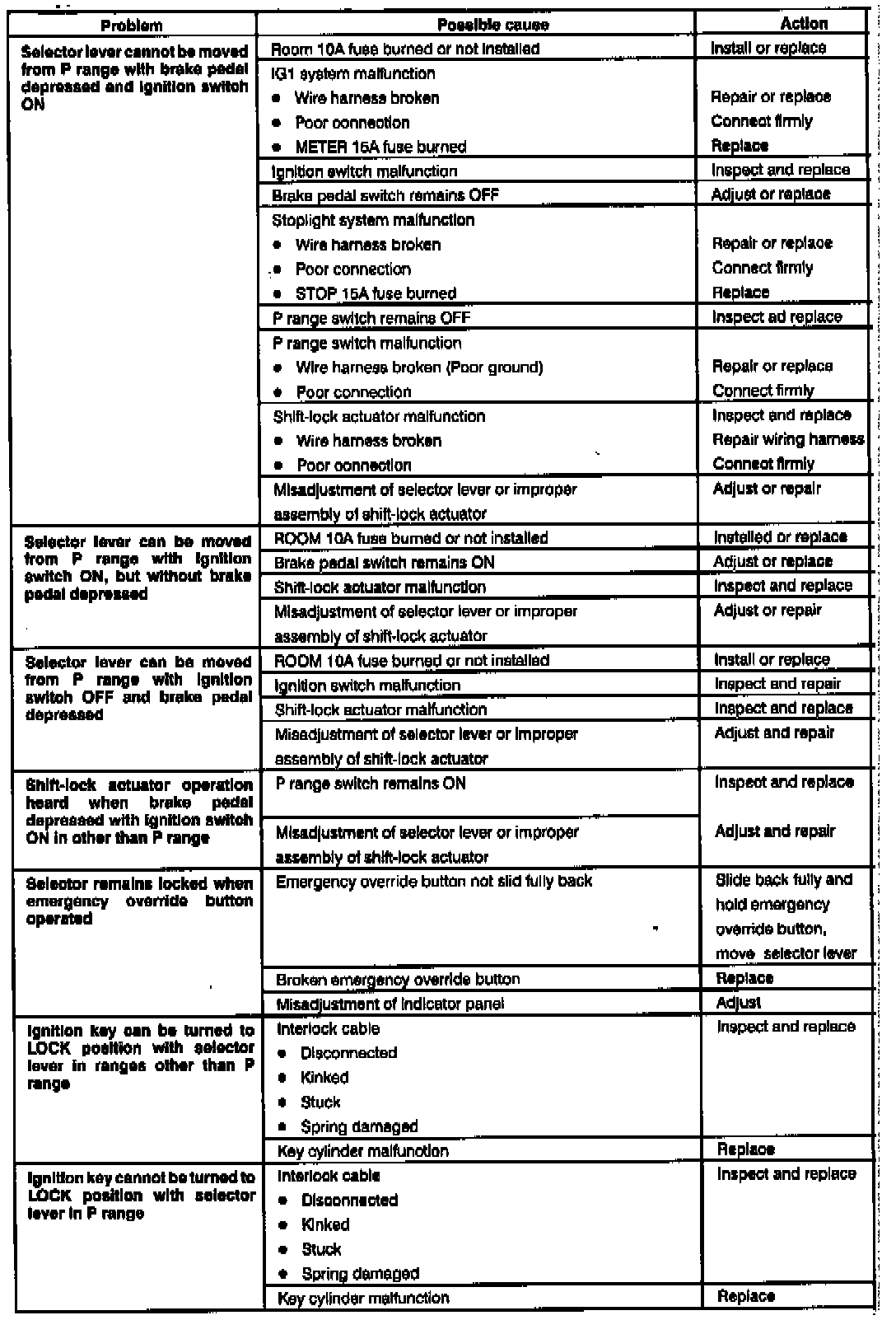

Fig. 10 Shift Interlock Troubleshooting Chart:

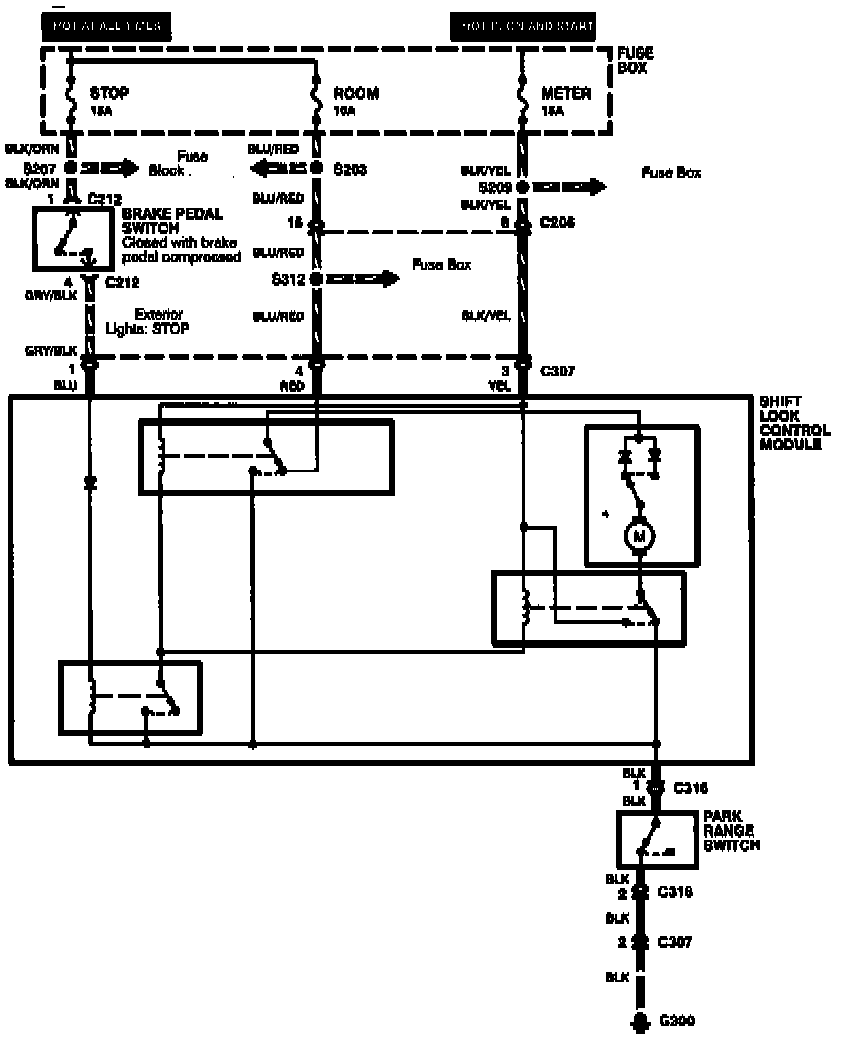

Fig. 11 Shift Interlock Wiring Diagram:

When troubleshooting shift interlock system, refer to troubleshooting chart, Fig. 10, and wiring diagram, Fig. 11.
