Home >> Kia >> 1996 >> Sephia Sedan L4-1.6L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Lamps and Indicators - A/T >> Shift Indicator - A/T >> Diagrams >> Electrical Diagrams

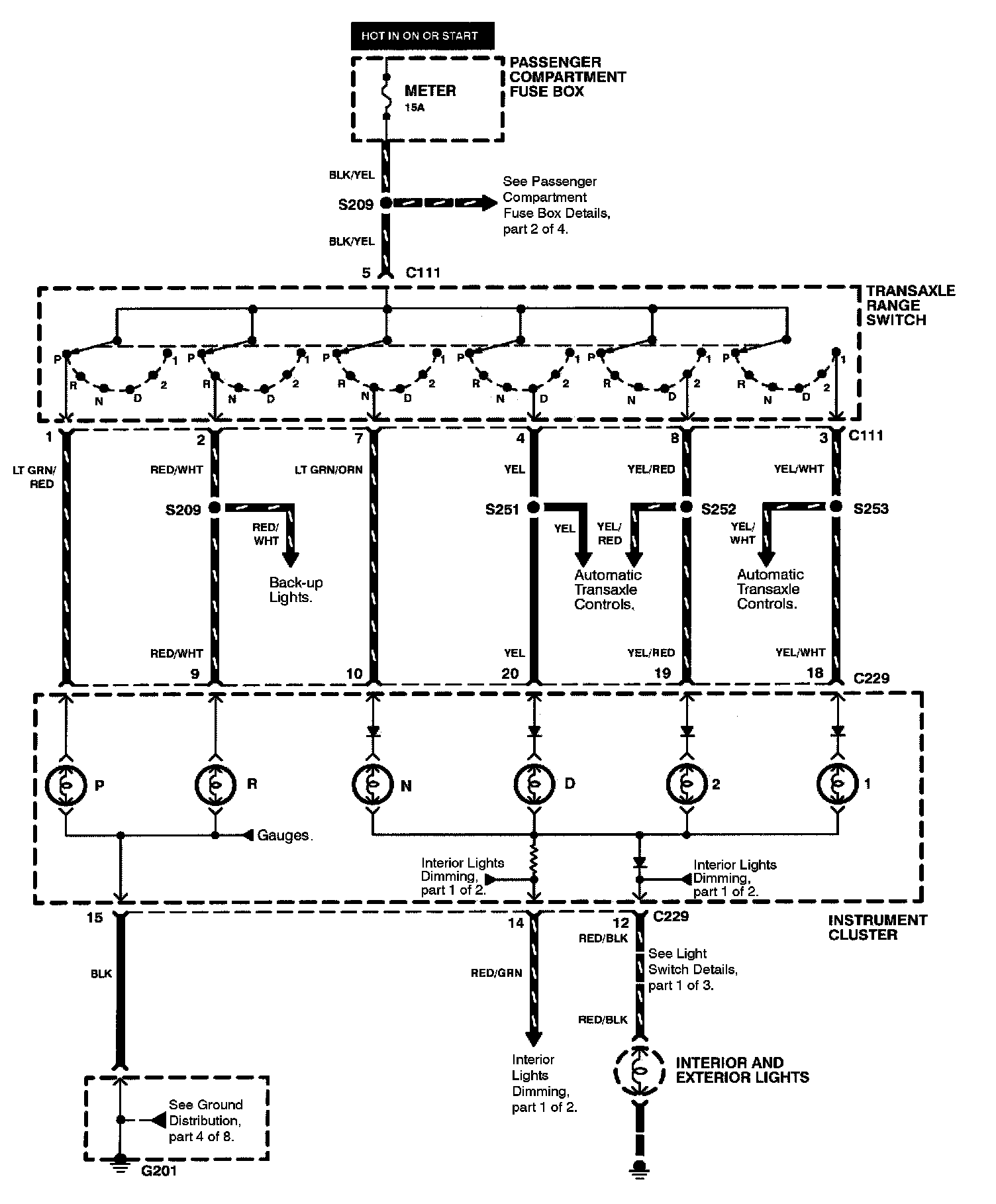

Electrical Diagrams
