Power Steering

1. Loosen wheel lug nuts.
2. Jack up front of vehicle and support with safety stands.
3. Remove wheels.

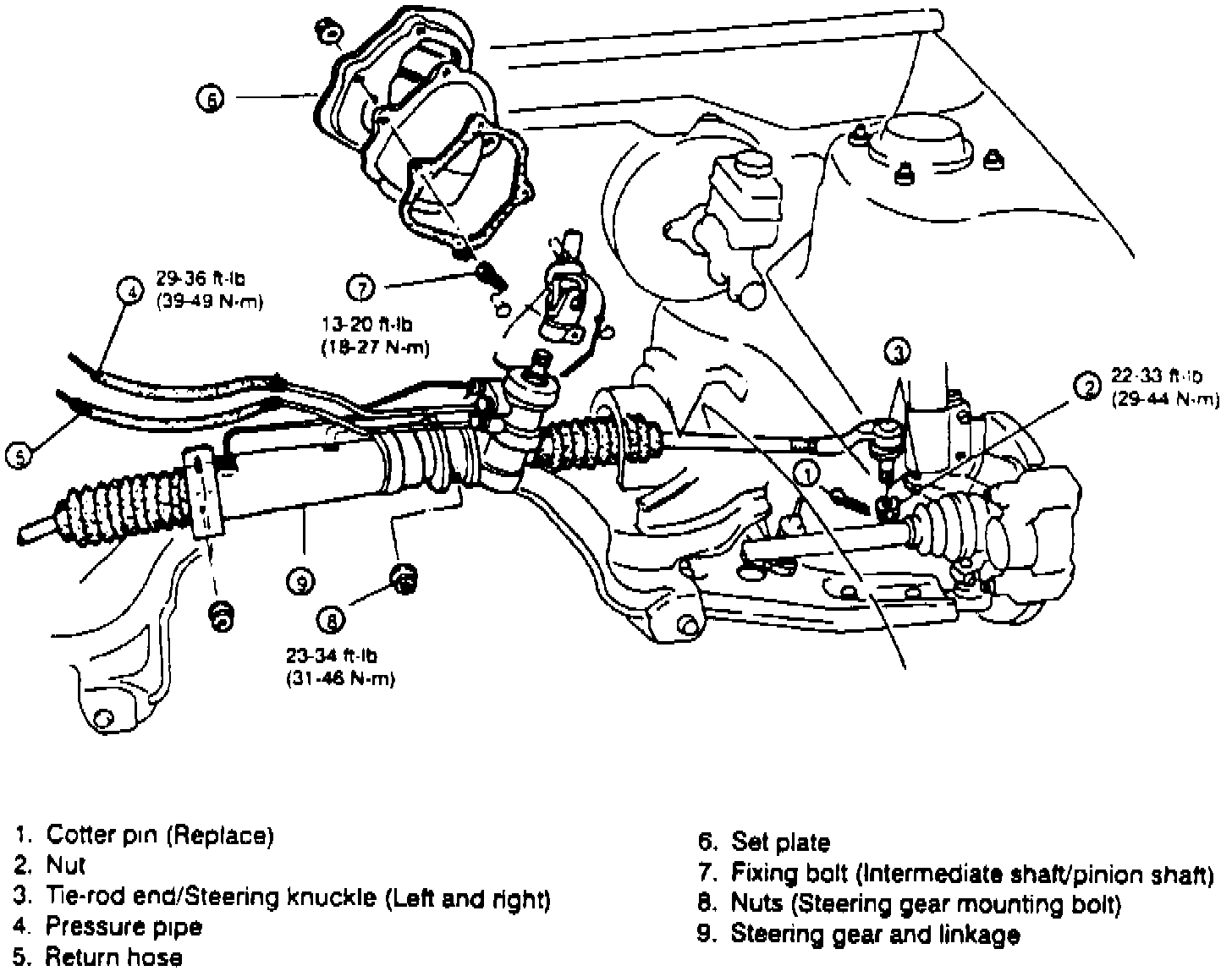

Fig. 12 Power Steering Gear Replacement:

4. Remove power steering gear and linkage in numbered sequence shown in Fig. 12.
5. If necessary, replace steering gear and linkage entirely. Do not disassemble.
6. Reverse procedure to install.
