Power Steering Pump: Service and Repair

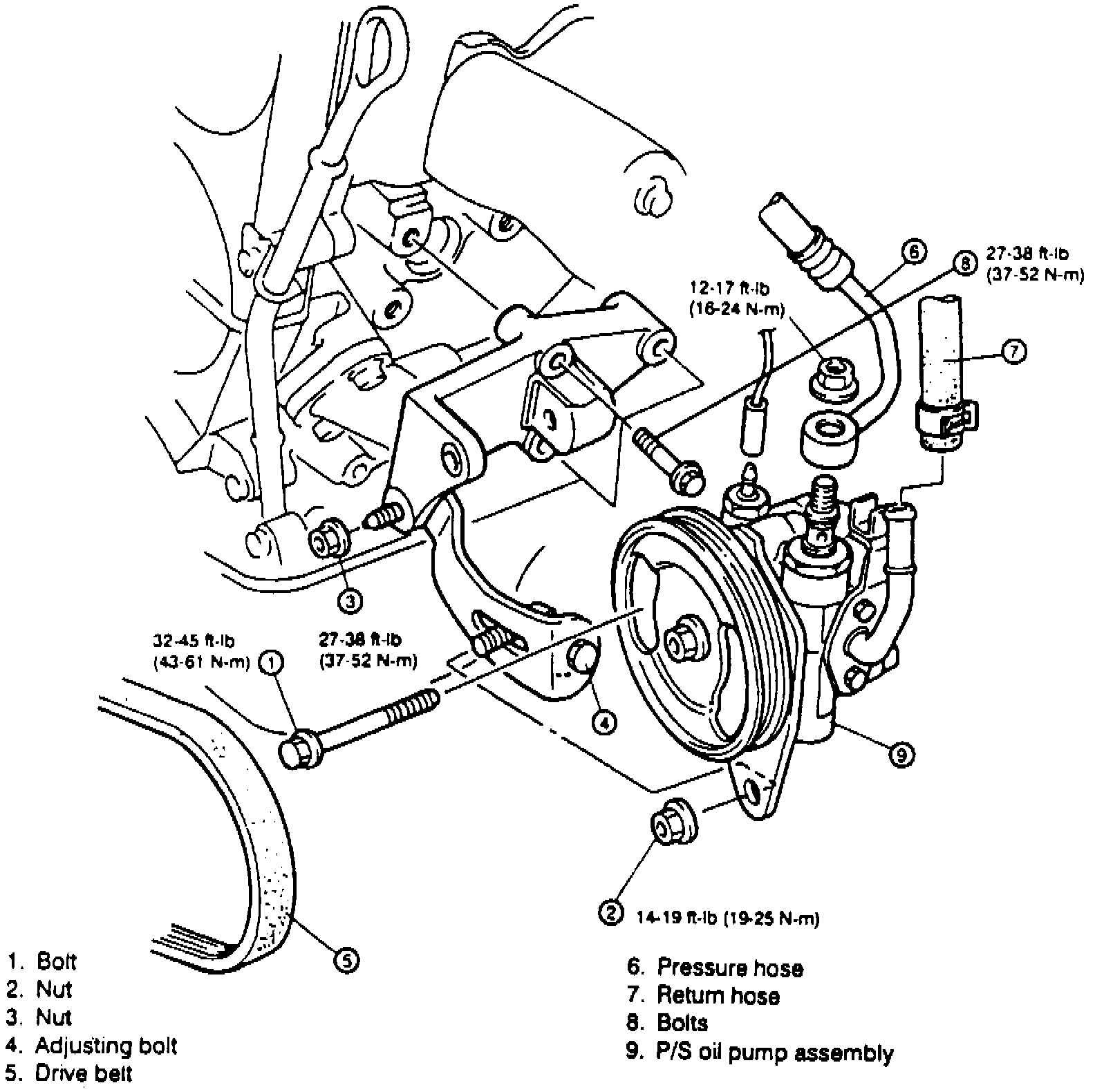

Fig. 15 Power Steering Pump Replacement:

1. Remove power steering pump in numbered sequence shown in Fig. 15.
2. If necessary, replace entire power steering pump assembly. Do not disassemble.
3. Reverse procedure to install.
