Cylinder Head

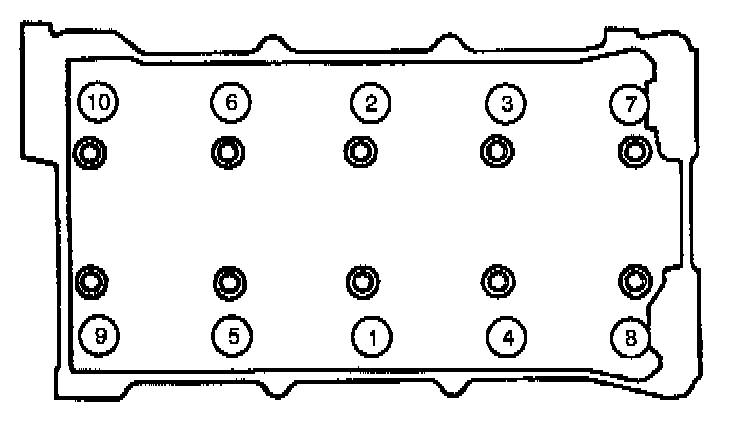

Torque the bolts in the order shown in the illustration, in two or three steps to the specified torque.

Tightening Torque:
56-60 ft. lb. (76-81 Nm)
