Home >> Kia >> 1996 >> Sephia Sedan L4-1.6L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Wiper and Washer Systems >> Wiper Switch >> Testing and Inspection

Wiper Switch: Testing and Inspection

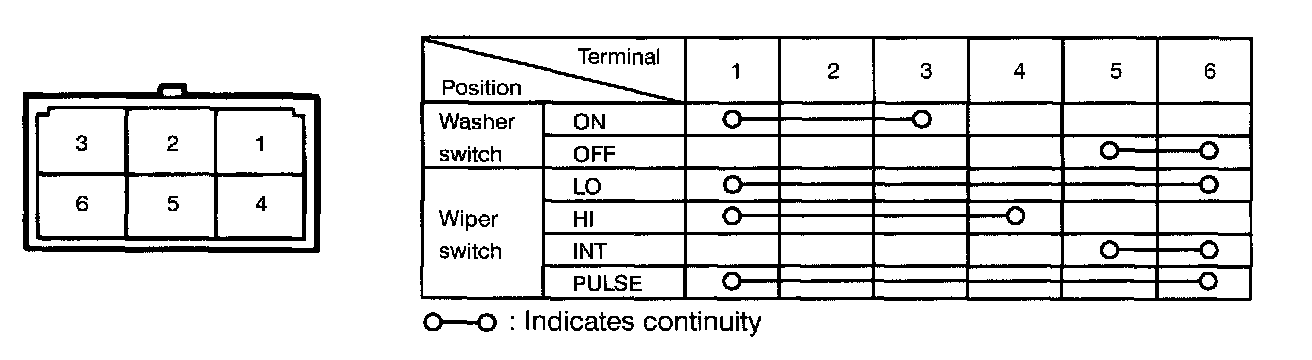

Check for continuity between terminals as indicated.
