Headlamp Switch: Testing and Inspection

Headlights-Circuit Testing:

1. Disconnect the light switch connector.

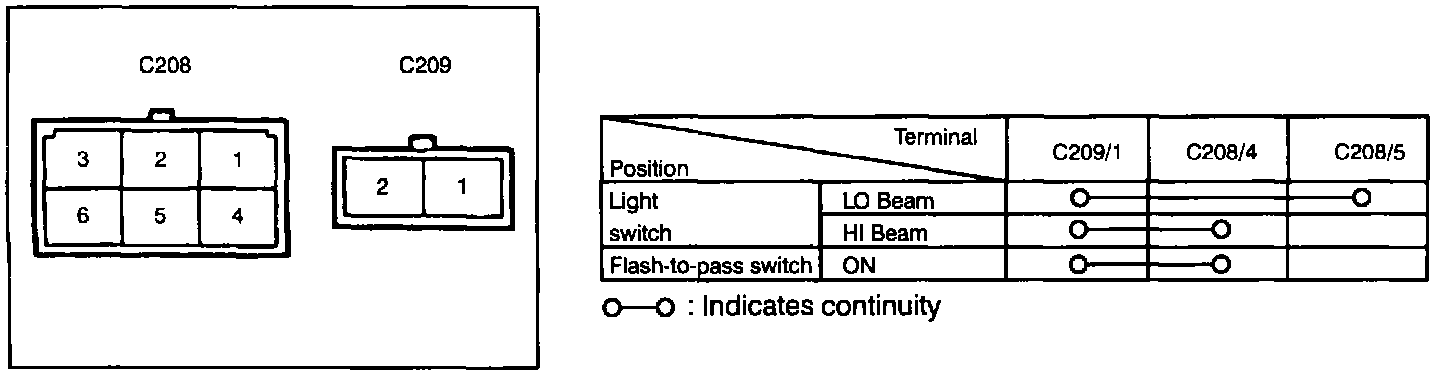

2. Check for continuity between switch terminals as indicated.
3. If continuity is not as specified, replace the switch.
