Home >> Kia >> 1996 >> Sephia Sedan L4-1.6L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - HVAC >> Blower Motor Switch >> Testing and Inspection

Blower Motor Switch: Testing and Inspection

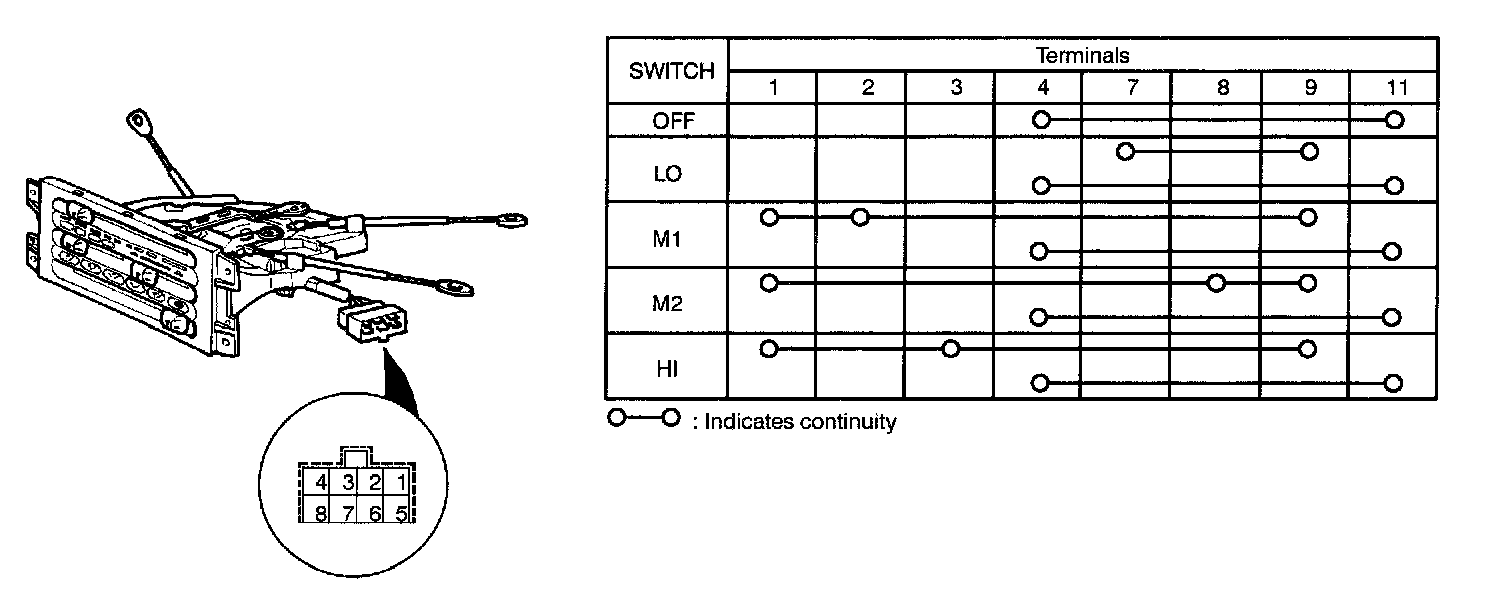

1. Check continuity between terminals of the blower switch.
