Home >> Kia >> 1996 >> Sephia Sedan L4-1.6L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Cruise Control >> Cruise Control Switch >> Testing and Inspection >> Circuit Testing

Circuit Testing

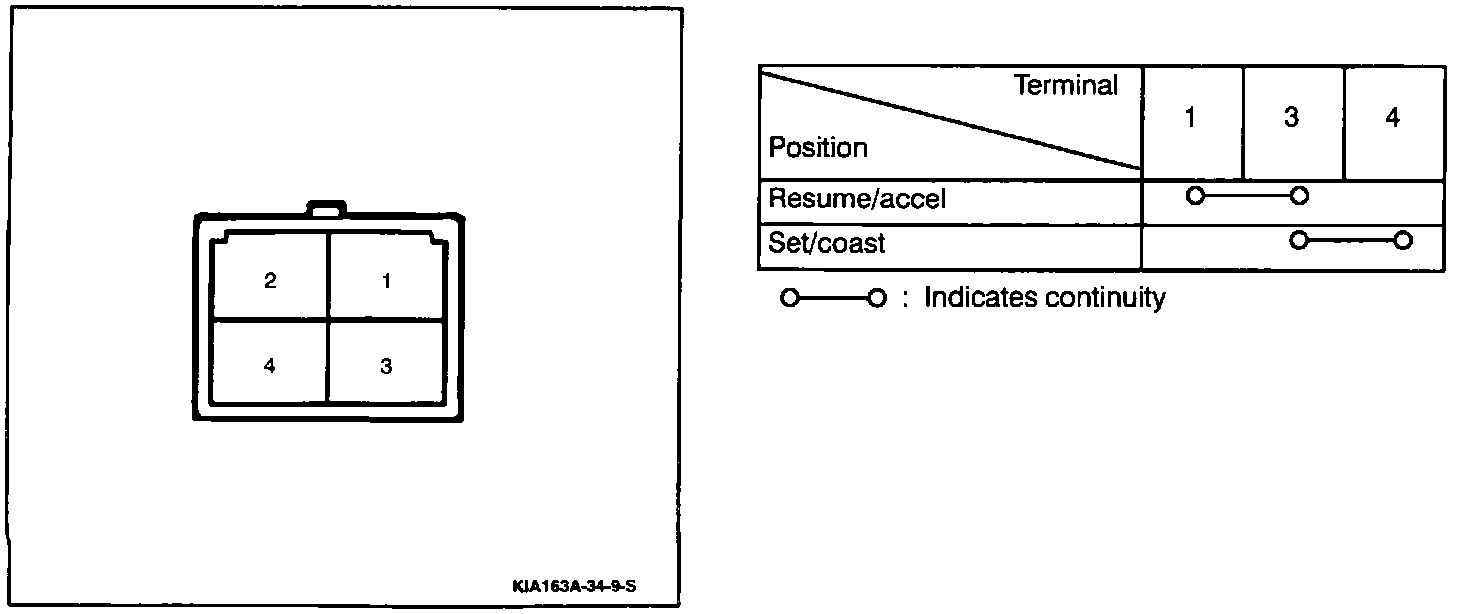

Circuit Testing-Cruise Control Switch:
