Kia
>>
1996
>>
Sephia Sedan L4-1.6L
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Diagrams
>>
Electrical Diagrams
>>

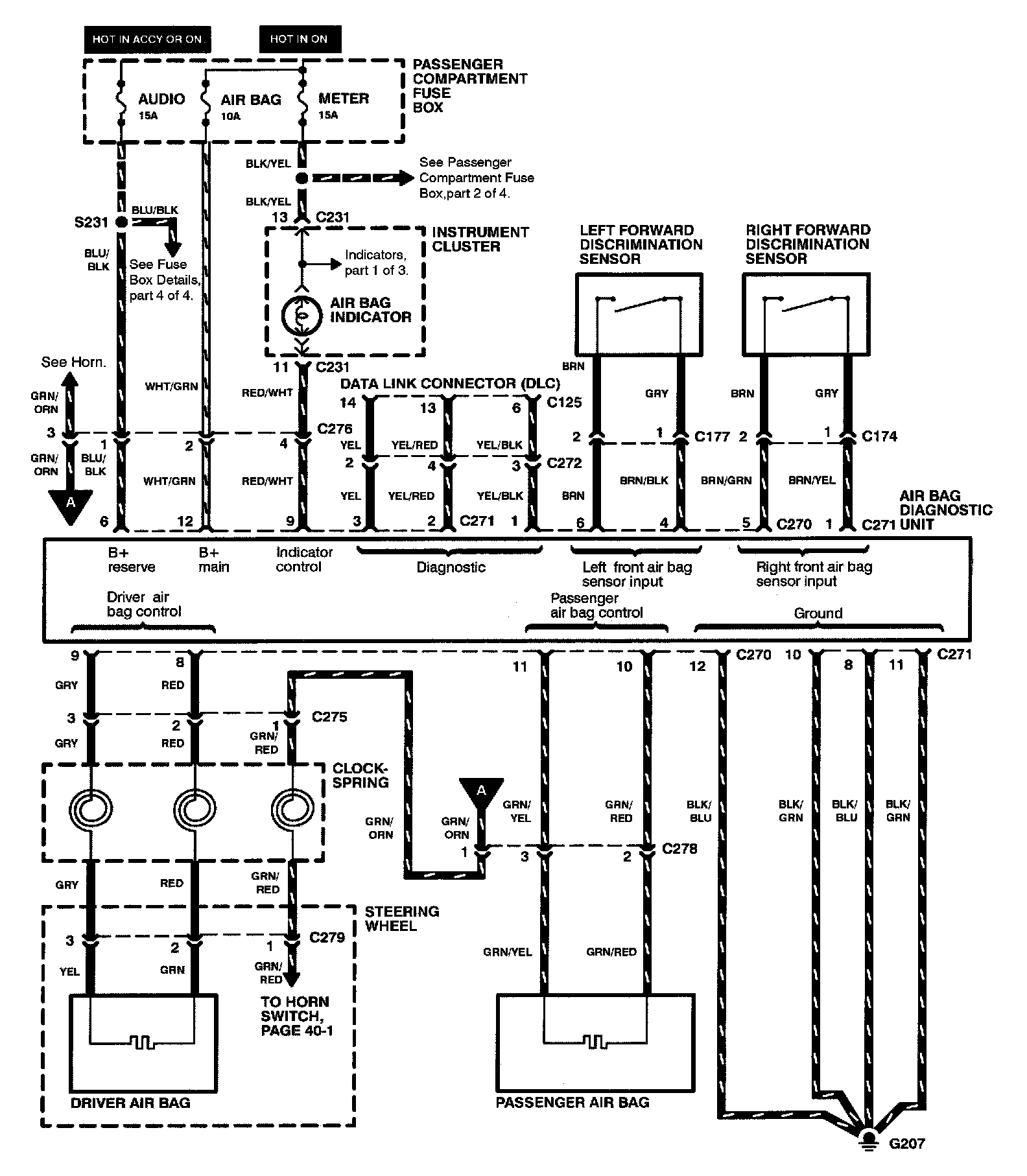

Multi-Point Air Bag - SRS
Multi-Point Air Bag - SRS
