Headlamp Relay: Testing and Inspection

1. Remove headlight relay from engine compartment fuse/relay box.

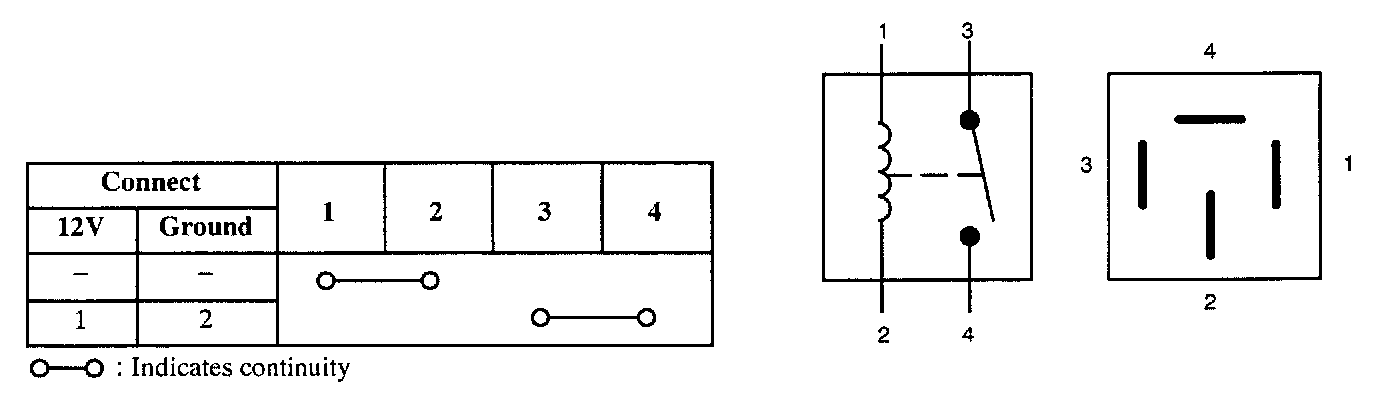

2. With the relay de-energized, use an ohmmeter to check the relay's coil and contacts. Energize the relay and check for contact closure.
3. If continuity is not as specified, replace the relay.
