System Relay: Testing and Inspection

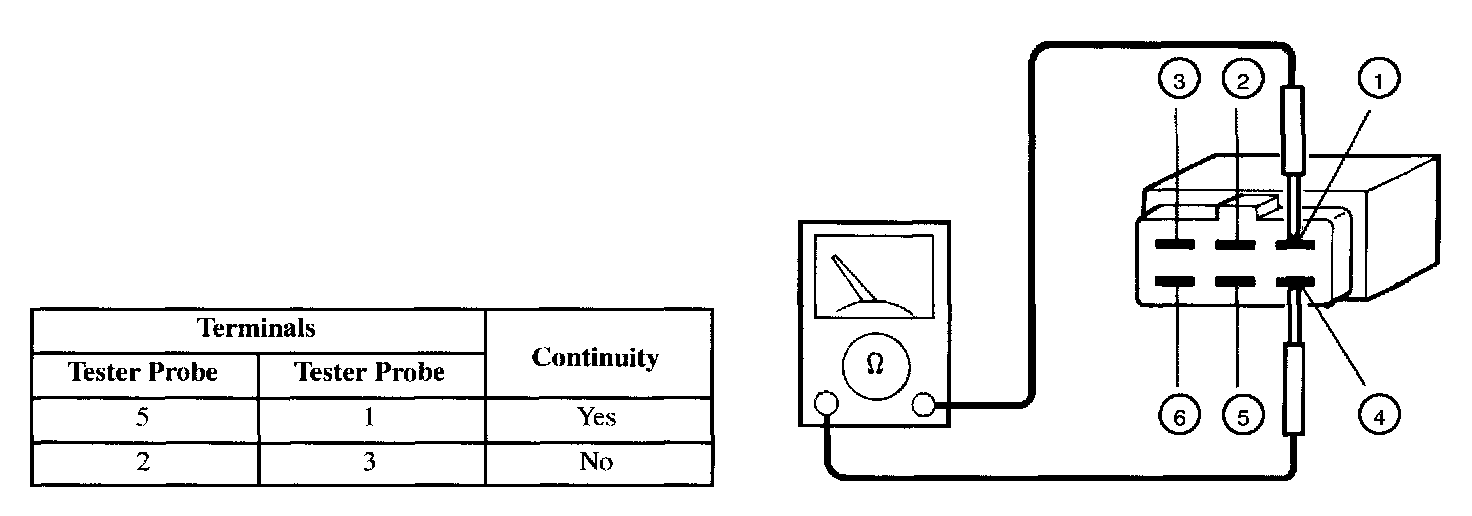

Inspection

1. Disconnect the A/C relay connector.




2. Check continuity between terminals.
3. If not as specified, replace the relay.
4. If correct, go to next step.

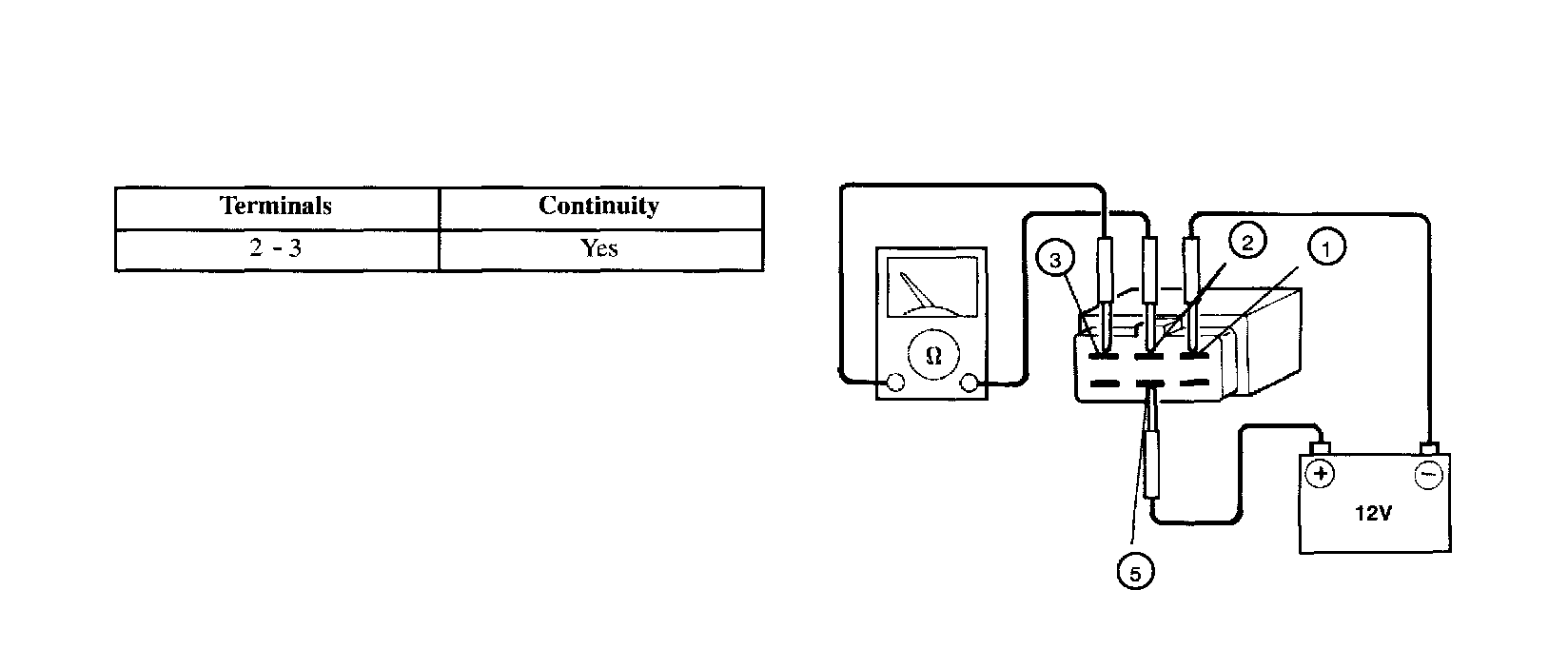

5. Apply 12 V to terminal 5 and ground terminal 1.




6. Check for continuity between terminals 2 and 3.
7. If not as specified, replace the relay.
