Fuel Tank: Service and Repair

Removal/Inspection/Installation

WARNING:
- Before performing the following operation, release the fuel pressure from the fuel system to reduce the possibility of injury or fire.
Fuel Pressure Release

- When removing the fuel tank, keep sparks, cigarettes, and open flames away from work area.
- Before repairing the fuel tank, clean it thoroughly with steam to remove all explosive gases.

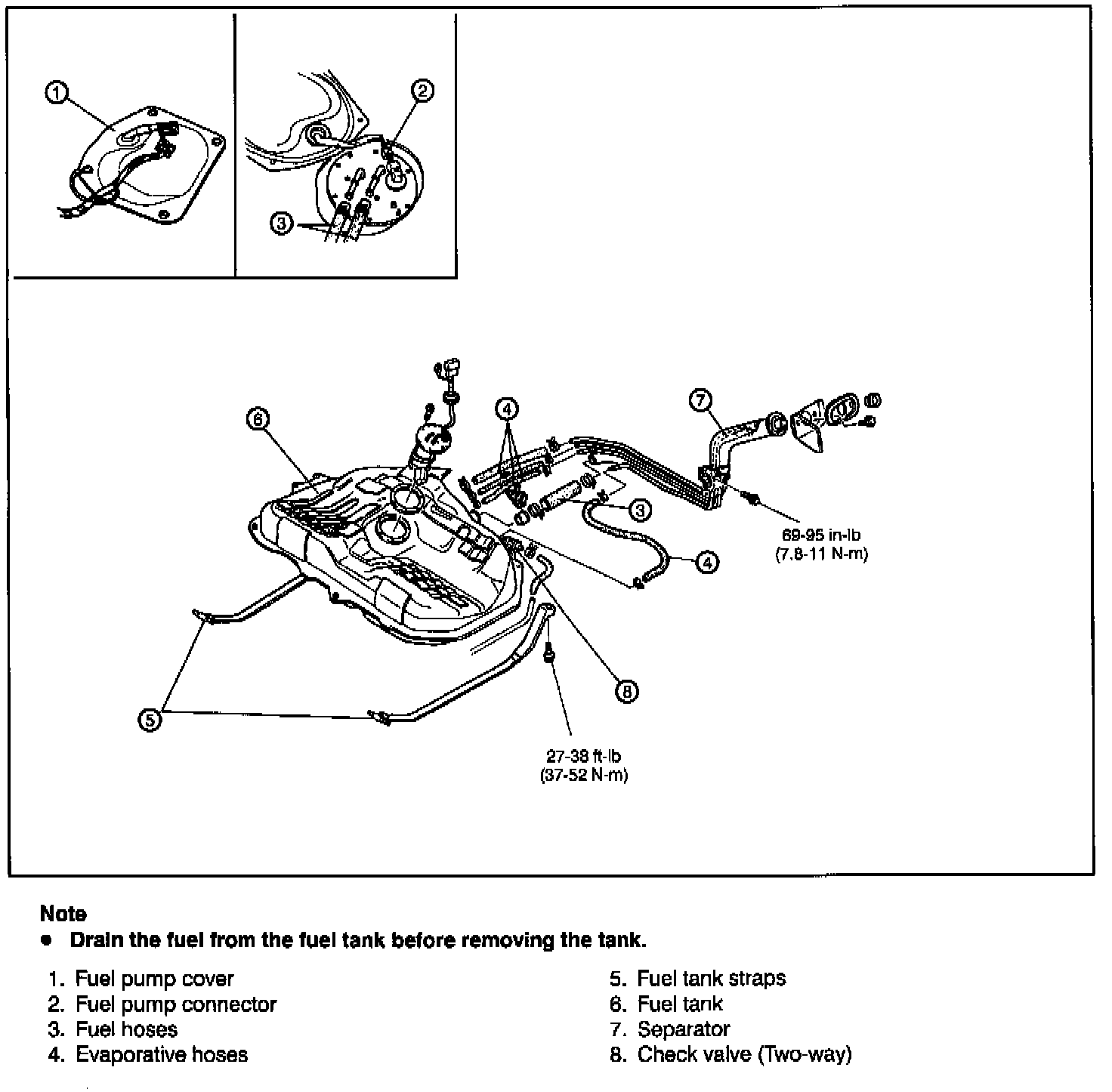

1. Remove in the order shown in the figure.
2. Inspect the fuel tank components visually and repair or replace if necessary
3. Install in the reverse order of removal, referring to Installation note.





Installation note

1. Push the ends of the main fuel hose, fuel return hose, and evaporative hoses onto the fuel tank fittings at least 1.0 in (25 mm).

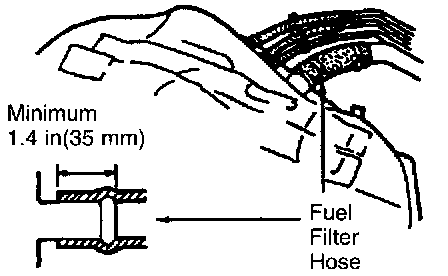

2 .Push the fuel filler hose onto the fuel tank pipe and filler pipe at least 1.4 in (35 mm).
