Fuel Pressure Regulator: Service and Repair

Description:

Replacement

WARNING:
- Before performing the following operation, release the fuel pressure from the fuel system to reduce the possibility of injury or fire.
Fuel Pressure Release

- When replacing fuel system components, keep sparks, cigarettes, and open flames away from the work area.

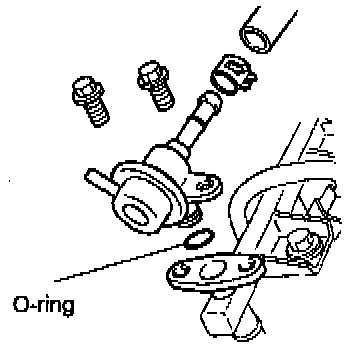

1. Disconnect the vacuum hose.
2. Disconnect the fuel return hose.
3. Remove the pressure regulator.
4. Install in the reverse order of removal., using a new 0-ring.

Tightening torque: 69-95 in-lb (7.8-11 N-m)
